Advances in Digital Music Iconography: Benchmarking the detection of musical instruments in unrestricted, non-photorealistic images from the artistic domain
DOI: https://doi.org/10.63744/nw7qvsb43mzn
Abstract
In this paper, we present MINERVA, the first benchmark dataset for the detection of musical instruments in non-photorealistic, unrestricted image collections from the realm of the visual arts. This effort is situated against the scholarly background of music iconography, an interdisciplinary field at the intersection of musicology and art history. We benchmark a number of state-of-the-art systems for image classification and object detection. Our results demonstrate the feasibility of the task but also highlight the significant challenges which this artistic material poses to computer vision. We evaluate the system to an out-of-sample collection and offer an interpretive discussion of the false positives detected. The error analysis yields a number of unexpected insights into the contextual cues that trigger the detector. The iconography surrounding children and musical instruments, for instance, shares some core properties, such as an intimacy in body language.
Introduction: the era of the pixel
The Digital Humanities constitute an intersectional community of praxis, in which
the
application of computing technologies in various subdisciplines in the
Geisteswissenschaften plays a significant role. Surveys of the history of
the field [Hockey 2004] have stressed that most of the seminal applications
of computing technology were heavily, if not exclusively, text-oriented: due to the
hardware and software limitations of the time, analyses of image data (but also audio
or
video data) remained elusive and out of practical reach until relatively late, certainly
at a larger scale. In the past decade, the application of deep neural networks has
significantly pushed the state of the art in computer vision, leading to impressive
advances in tasks such as image classification or object detection [LeCun et al. 2015]
[Schmidhuber 2015]. Even more recently, improvements in the field of
computer vision have started to find practical applications in study domains outside
of
strict machine learning, such as physics, medicine or even astrology. Supported by
this
technology's (at times rather naive) coverage in the popular media, the communis opinio
has been eager to herald the advent of the "Era of the Pixel".
In the Digital Humanities too, the potential of computer vision is nowadays increasingly
recognized. A programmatic duet of two recent articles on "distant viewing" in the
field's
flagship journal [Wevers and Smits 2020]
[Arnold and Tilton 2019] leads the way in this respect, emphasizing the privileged role
these new methodologies can play in the exploration of large data collections in the
Humanities. The present paper too is situated in a multidisciplinary project in which
we
investigate how modern artificial intelligence can support GLAM institutions (galleries,
libraries, archives, and museums) in cataloguing and curating their rapidly expanding
digital assets. As a case study, we shall work with non-photorealistic depictions
of
musical instruments in the artistic domain.
The structure of this paper is as follows. First, we motivate and contextualize our
case
study of musical instruments from within the scholarly framework of music iconography
and
computer vision, but also from the more pragmatic context of the research project
from
which this focus has emerged. We go on to describe the construction and characteristics
of
an annotated benchmark dataset, the MINERVA dataset, that will be released together
with
this paper, through which we hope to stimulate further research in this area. Using
this
benchmark data, we stress-test the available technology for the identification and
detection of objects in images and discuss the current limitations of systems. To
illustrate the broader relevance of our approach, we apply the trained benchmark system
'in the wild', on unseen and out-of-sample heritage data, followed by a quantitative
and
qualitative evaluation of the results. Finally, we identify what seem to be the most
relevant directions for future research.
Motivation
Music iconography
The present paper must be understood against the wider scholarly background of music
iconography, a Humanities field of inquiry with a rich, interdisciplinary history
in its
own right. [Buckley 1998] concisely defined music iconography as a field
being "concerned with the study of the visual representation of musical topics. Its
primary materials include portraits of performers and composers, illustrations of
instruments, occasions of music-making, and the use of musical imagery for purposes
of
metaphorical or allegorical allusion". Because of this wide range of topics, at the
intersection of art history and musicology [Baldassarre 2007]
[Baldassarre 2008], the field takes pride of its interdisciplinarity.
Music iconography deliberately adopts a "methodological plurality" [Baldassarre 2007] which is increasingly complemented with digital
approaches. A major achievement in this respect has been the establishment (in 1971)
and
continued expansion and curation of an international digital inventory for musical
iconography, the Répertoire International d'Iconographie Musicale (RIDIM).
Now publicly available as an online web resource (https://ridim.org/), RIDIM functions as a reference image database, designed to
facilitate the efficient yet powerful description and discovery of music-related art
works [Green and Ferguson 2013]. The need for such an international inventory has been
acknowledged as early as 1929 and its significant scope facilitates the international
study of music-related phenomena and their depiction across the visual arts.
Music iconography has an important tradition of focused studies targeting the deep,
interpretive analysis of individual artworks or small collections of them. Such
hermeneutic case studies have the advantage of depth, but understandably lack a more
panoramic perspective on the phenomena of interest and, for instance, diachronic or
synchronic trends and shifts therein. The large-scale, "serial" study of musical
instruments as depicted across the visual arts remains a desideratum in the field
and
has the potential of bringing a macroscopic perspective to historical developments.
In
the present paper, we explore the feasibility of applying methods from present-day
computer vision, in an attempt to scale up current approaches. The primary motivation
of
this endeavour is that digital music iconography – or "Distant" music iconography,
in an
analogy to similar developments in literary studies [Wevers and Smits 2020]
[Arnold and Tilton 2019] – in principle has much to gain from such methods, at least
if they are carefully applied and in continuous interaction with experts in the domain.
Our focal point is the automated identification and detection of individual musical
instruments in unrestricted, digitized materials from the realm of the visual arts.
This scholarly initiative is embedded in the collaborative research project INSIGHT
(Intelligent Neural Systems as InteGrated Heritage Tools), which aims to stimulate
the
application of Artificial Intelligence to the rapidly expanding digital collections
of a
selection of federal museum clusters in Belgium.[1] One
important, transcommunal aspect to Belgium's cultural history relates to music and
musical history, with the invention of the saxophone by Adolphe Sax as an iconic
example. An additional factor is the presence of the Musical Instruments Museum in
the
capital (Brussels) that contributed significantly to international research projects
in
this area (and which is a partner in the INSIGHT project). This contextualization,
finally, is also important to understand our specific choice for the topic of musical
instruments, as a representative and worthwhile case study on the application of modern
machine learning technology in digital heritage studies.
Computer vision
The methodology for the present paper largely derives from machine learning and more
specifically computer vision, a field concerned with computational algorithms that
can
mimic the perceptual abilities of humans and their capacity to construct high-level
interpretations from raw visual stimuli [Ballard and Brown 1982]. In the past decade,
this field has gone through a remarkable renaissance, following the emergence of powerful
learning techniques based on so-called neural networks. In particular the advent of
"convolutional" networks [LeCun et al. 2015] has led to dramatic advances in the
state of the art for a number of standard applications, including image classification
("Is this an image of a cat or a dog?") and object detection ("Draw a bounding box
around
any cats in this image"). For some of these tasks, modern computer systems have even
been
shown to rival the performance of humans [Russakovsky et al. 2015]. In spite of the
impressive advances in recent computer vision research, it is generally acknowledged
that
the state of the art is still confronted with a number of major, as yet unsolved,
challenges. In this section we highlight four concrete issues that are especially
pressing, given the focus of this paper on image collections in the artistic domain.
These
challenges motivate our work from the point of view of computer vision, rather than
art
history.
Photo-realism
One major hurdle is that computer vision nowadays strongly gravitates towards so-called
photo-realistic material, i.e. digitized or born-digital versions of photographs that
do
not actively attempt to distort the reality they depict. The best example in this
respect is the influential ImageNet dataset [Russakovsky et al. 2015], that
offers highly realistic photographic renderings of everyday concepts drawn from
WordNet's lexical database. While some more recent heritage collections of course
abound
in such photo-realistic material (e.g. advertisements in historic newspapers),
traditional photography does not take us further back in time than the nineteenth
century [Hertzmann 2018]. Additionally, the Humanities study many other
visual arts that prioritize much less photorealistic representation and focus even
on
completely 'fictional' renderings of (potentially imagined or historical) realities.
While there has been some encouraging and worthwhile prior work into the application
of
computer vision to non-photorealistic depictions, this work is generally more scattered
and the results (understandably) less advanced than those reported for the
photorealistic domain. Inspiring recent studies in this area include [Crowley and Zisserman 2014]
[Van et al. 2015]
[Seguin 2018]
[Bell and Impett 2019].
Data scarcity
It is a well-known limitation that convolutional neural networks require large amounts
of manually annotated example data (or training data) in order to perform well. To
address this issue, the community has released several public datasets over the years
[Xiang et al. 2014]
[Russakovsky et al. 2015]
[Mensink and Van Gemert 2014]
[Strezoski and Worring 2017]
[Lin et al. 2014] which has allowed the successful training of a large set of
neural architectures [He et al. 2016]
[Szegedy et al. 2015]
[Simonyan and Zisserman 2014]. However, the nature of the images included in these
datasets is mostly photo-realistic, also because such images are relatively
straightforward to obtain and annotate. These image collections are very different
in
terms of texture, content and availability from the sort of data that can nowadays
be
found in the digital heritage domain.
Computer vision researchers interested in the artistic domain have attempted to
alleviate the relative dearth of training data by either releasing domain-specific
datasets [Mensink and Van Gemert 2014]
[Strezoski and Worring 2017] or through the application of transfer learning [Sabatelli et al. 2018], a machine learning paradigm which allows the application of
neural networks to domains where training data is scarce. For image classification,
for
instance, these efforts have indeed greatly contributed to overall feasibility of
applying computer vision outside the photo-realistic domain [Sabatelli et al. 2018]. Both approaches, however, have limitations when it comes to the complementary task
of object detection. Popular datasets such as the Rijksmuseum collection [Mensink and Van Gemert 2014] or the more recent OmniArt dataset [Strezoski and Worring 2017] do not come with the metadata required for object-detection
problems.
With this work, we take one step forward in addressing these limitations. Firstly,
the
MINERVA dataset that we present below, specifically tackles the problem of object
detection within the broader heritage domain of the visual arts, introducing a novel
benchmark for researchers working at the intersection of computer vision and art
history. Secondly, we present a number of baseline results on the newly introduced
dataset. The results are reported for a representative set of common architectures,
which were pre-trained on photo-realistic images. This allows us to investigate to
what
extent these methods can be reused when tested on artistic images.
Irrelevant training categories
Previous studies have demonstrated the feasibility of "pretraining": with this
approach, networks are first trained on (large) photorealistic collections (i.e. the
source domain) and then applied downstream (or further fine-tuned) on an out-of-sample
target domain, that has much less annotated data available. While generally useful,
this
approach is still confronted with the problem that the annotation labels or categories
attested in the source domain are often of little interest within the target domain

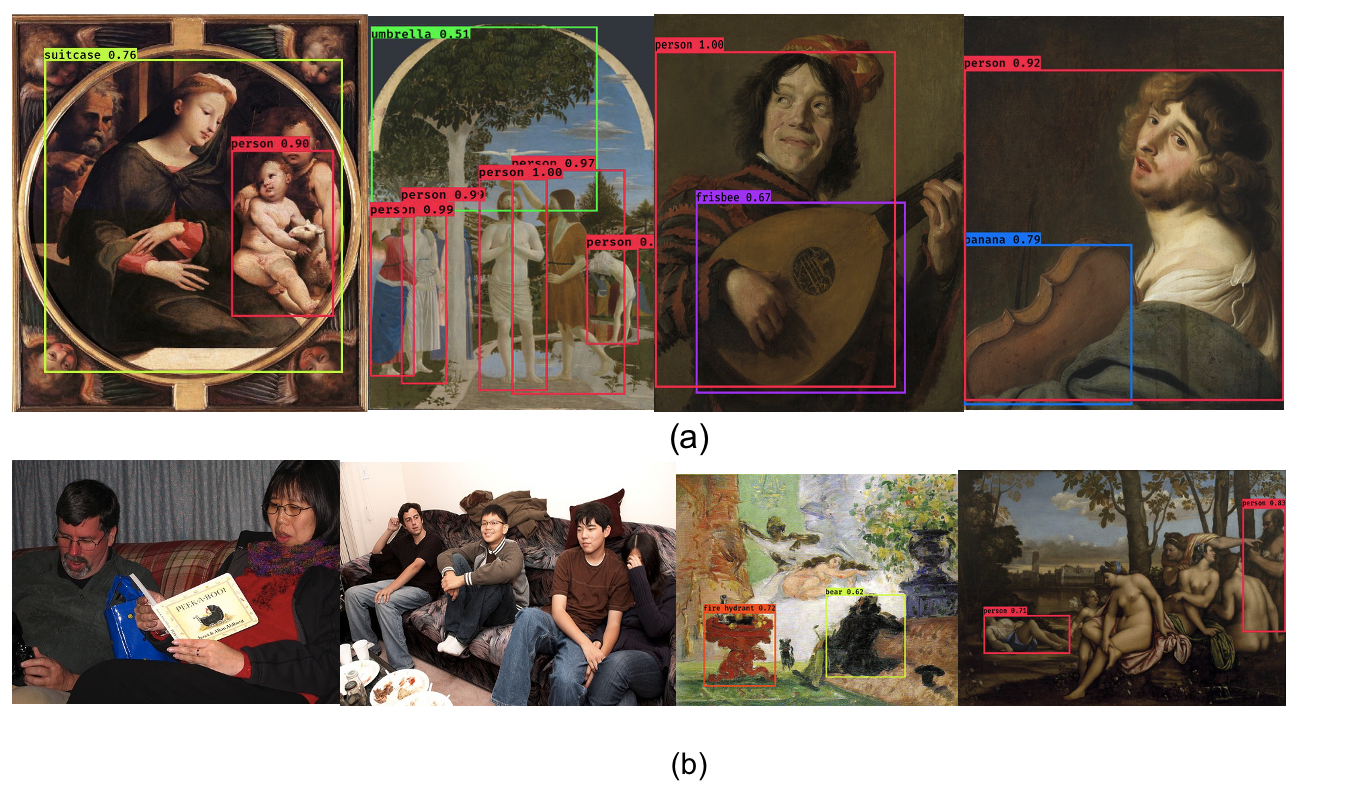

(i.e. art history, in the present case). The popular Pascal-VOC dataset [Everingham et al. 2010], for instance, tackles the detection of 20 classes, out of
which more than a third constitute different kinds of transportation systems, such
as
trains, boats, motorcycles and cars. Naturally, these means of transportation are
very
unlikely to be represented in artworks that date back to the premodern period. The
more
complex MS-COCO dataset [Lin et al. 2014] presents similar problems: even though
the amount of classes increases to 80, most of the objects which should be detected
are
again unlikely to be represented within historical works of art, since they correspond
to objects which have only been relatively recently invented such as "microwave",
"cell-phone", "tv-monitor", "laptop", or "remote", and the like. This poses a serious
constraint when it comes to the use of pre-trained object-detectors for artistic
collections. As with most supervised learning algorithms, models trained on these
collections will only perform well on the sort of data on which they have been
explicitly trained. To illustrate this model bias, we report some (nonsensical)
detections in the first row of images presented in Figure
1a.
Robustness of the models
Popular object detectors such as YOLO [Redmon and Farhadi 2018] and Fast R-CNN [Ren et al. 2017] have been designed to perform well on the above-mentioned
photo-realistic datasets. However, the variance of the samples denoting a specific
class
within these datasets is usually much smaller when compared to that in artistic
collections. As an example, we refer to a number of images representing the person
class
within the Pascal-VOC dataset: we can observe from the two leftmost images of the
bottom
row of Figure 1 that the representation of a 'person' is
overall relatively unambiguous and hardly distorted. As a result, the person class
is
usually easily detected by e.g. the YOLO architecture. However, we can see that this
task already becomes harder when a person has to be detected within a painting
(potentially with a highly distorted representation of the humans in the scene). As
shown by the two rightmost images of the bottom row (Figure
1b), a YOLO-V3 model does not see most of the persons represented in the
paintings and misclassifies them as non-human beings (e.g. "bear").
Figure 1.
Examples showing the limitations that occur when a standard object detector
trained on photo-realistic images is tested in the domain of the visual arts. Figure
1a: Four anecdotal examples showing that the "person” class is usually reasonably
detected by the YOLO architecture, although other, non-sensical detections frequently
occur. Figure 1b: the two images on the left show that the variation in depiction
of
people is limited in photorealistic material, in comparison to the artistic
representations of people (two examples to the right).All examples in Figure 1 come from a pretrained YOLO-V3
model [Redmon and Farhadi 2018] which has been originally trained on the COCO dataset
[Lin et al. 2014] and then tested on artworks coming from [Mensink and Van Gemert 2014] and [Strezoski and Worring 2017]. The images presented in
the first row illustrate that the network is biased towards making detections which
are
very unlikely to appear in premodern depictions. These detections correspond to the
identification of objects such as "suitcase", "umbrella" or "frisbee" and "banana".
The
two last images presented in the second row show that standard models fail to properly
recognize a simple class such as person. In fact, they fully fail in detecting most
of
the persons that are present in the artworks due to these representations being highly
different from the persons that are present in the Pascal-VOC dataset (first two images
of the second row).
MINERVA: dataset description
In this section, we describe MINERVA, the annotated dataset in the field of object
detection that is presented in this work. This novel benchmark dataset will be released
jointly with this paper.[2] The main task under
scrutiny here is the detection of musical instruments in non-photorealistic, unrestricted
image collections from the artistic domain. We have named the dataset with the acronym
MINERVA, which stands for 'Musical INstrumEnts Represented in the Visual Arts', after
the
Roman goddess of the arts (amongst many other things).
Data Sources
The base data for our annotation effort was assembled in a series of 'concentric'
collection campaigns, where we started from smaller, but high-quality datasets and
gradually expanded into larger, albeit less well curated data sources.
- RIDIM: We harvested a collection of high-quality images from the RIDIM database, in those cases where the database entries provided an unambiguous hyperlink to a publicly accessible image. These records were already assigned MIMO codes by a community of domain experts, which provided important support to our in-house annotators (especially during the first experimental rounds of annotations).
- RMFAB/RMAH: We expanded on the core RIDIM data by including (midrange resolution) images from the digital collections of two federal museums in Brussels: the RMFAB (Royal Museums of Fine Arts of Belgium, Brussels) and the RMAH (Royal Museums of Art and History, Brussels). These images were selected on the basis of previous annotations that suggested they included depictions of musical instruments, although no more specific labels (e.g. MIMO codes) were available for these records at this stage. Copyrighted artworks could not be included for obvious reasons (copyright lasts for 70 years from the death of the creator under Belgian intellectual law).
- Flickr: To scale up our annotation efforts, finally, we collected a larger dataset of images from the well-known image hosting service 'Flickr' (www.flickr.com). We harvested all images from a community-curated collection of depictions of musical instruments in the visual arts pre-dating 1800.[3] This third campaign yielded much more data than the former two, but these were more noisy and contained a variety of false positives that had to be manually deleted during the annotation phase.
Our collection efforts were inclusive, and the resulting dataset should be considered
as "unrestricted", covering a variety of periods, genres and materials (although it
was
not feasible to include more precise metadata about these aspects in the dataset).
Note
that, exactly because of this highly mixed data origin, the distribution in MINERVA
does
not give a faithful representation of any kind of historic reality: music iconography
gives a highly colored perspective on "popular" instruments in art history and some
instruments may not often have been depicted, even though they were popular at the
time.
Likewise, other instruments are likely to be over-represented in iconography.
Vocabulary
To increase the interoperability of the dataset, individual instruments have been
unambiguously identified using their MIMO codes. The MIMO (Musical Instrument Museums
Online) initiative is an international consortium, well known for its online database
of
musical instruments, aggregating data and metadata from multiple heritage institutions
[Dolan 2017].[4]
An important contribution is their development of a uniform metadata documentation
standard for the field, including a (multilingual) vocabulary to identify musical
instruments in an interoperable manner. The MIMO ontology is hierarchical, meaning
that
each individual leaf node in their concept tree (e.g. 'viola') is a hyponym of a wider
instrument category (e.g. 'viola' ∈ 'string instruments'). Table
1 shows examples of annotation labels from this ontology. Our dataset provides a
spreadsheet that allows for the easy mapping of individual instruments to their
instrument category. Below, we shall report experiments for the more fine-grained
and
less granular, hypernym versions of the categorization task.
| Instrument hypernym | Stringed instruments | Wind instruments | Percussion instruments | Keyboard instruments | Electronic instruments |
| Example instruments | Lute, psaltery, fiddle, viola da gamba, cittern | Transverse flute, end-blown trumpet, horn, shawm, bagpipe | Tambourine, cylindrical drum, frame drum, friction drum, bell | Pianoforte, virginal, portative organ, harpsichord, clavichord | Electric guitar, synthesizer, theremin, vocoder, mellotron |
Table 1.
Examples of annotation labels from the MIMO ontology (not all were encountered in
MINERVA).Annotation process
Using the conventional method of rectangular bounding boxes, we have manually annotated
16,142 musical instruments (of which 172 unique) in a collection of 11,765 images,
within the open-source Cytomine software
environment [Marée et al. 2016]. Often multiple instruments appeared within the
same images and bounding boxes were therefore allowed to overlap. Example annotations
and a screenshot of the annotation environment are presented in Figure 2.
The dataset contains artistic objects from diverse periods and of various types,
ranging from paintings, sculptures, drawings, to decorative arts, manuscript
illuminations and stained-glass windows. Thus, they involve a daunting diversity of
media, techniques and modes. Whereas in some cases the images were straightforward
to
annotate (e.g. an image representing a bell in full frame), several obstacles occurred
on a recurrent basis. These obstacles can be linked to three parameters:
- Representation: A challenging aspect was the variety of artistic depiction modes represented in the dataset, ranging from photo-realistic renderings to heavily stylized depictions from specific art-historical movements (e.g. impressionism, pointillism, fauvism, cubism, ...) (Figure 3a). Additionally, visibility could be low due to a proportionally small instrument depiction or the profusion of details (Figure 3b). In some instances, the state of the depicted object and its medium made the detection of the instrument difficult, e.g. a damaged medieval tympanon (Figure 3b).
- Quality: Other, more pragmatic issues arose from the images themselves. Occasionally, the quality of the images was too low to be able to detect the instruments (e.g. low resolution or compression defects) (Figure 3c). A great deal of the images did not meet international quality standards for heritage reproduction photography (uniform and neutral environment and lighting, frontal point of view), which implies that the instruments were even more difficult to detect.
- Boxes: The use of a rectangular shape for the bounding boxes sometimes has limitations and implied a certain lack of precision, e.g. in the case of a diagonally positioned flute, or in the case of overlapping instruments (Figure 3d). For some instruments which consist of several parts, e.g. a violin and its bow, only the main part (the violin) was annotated.

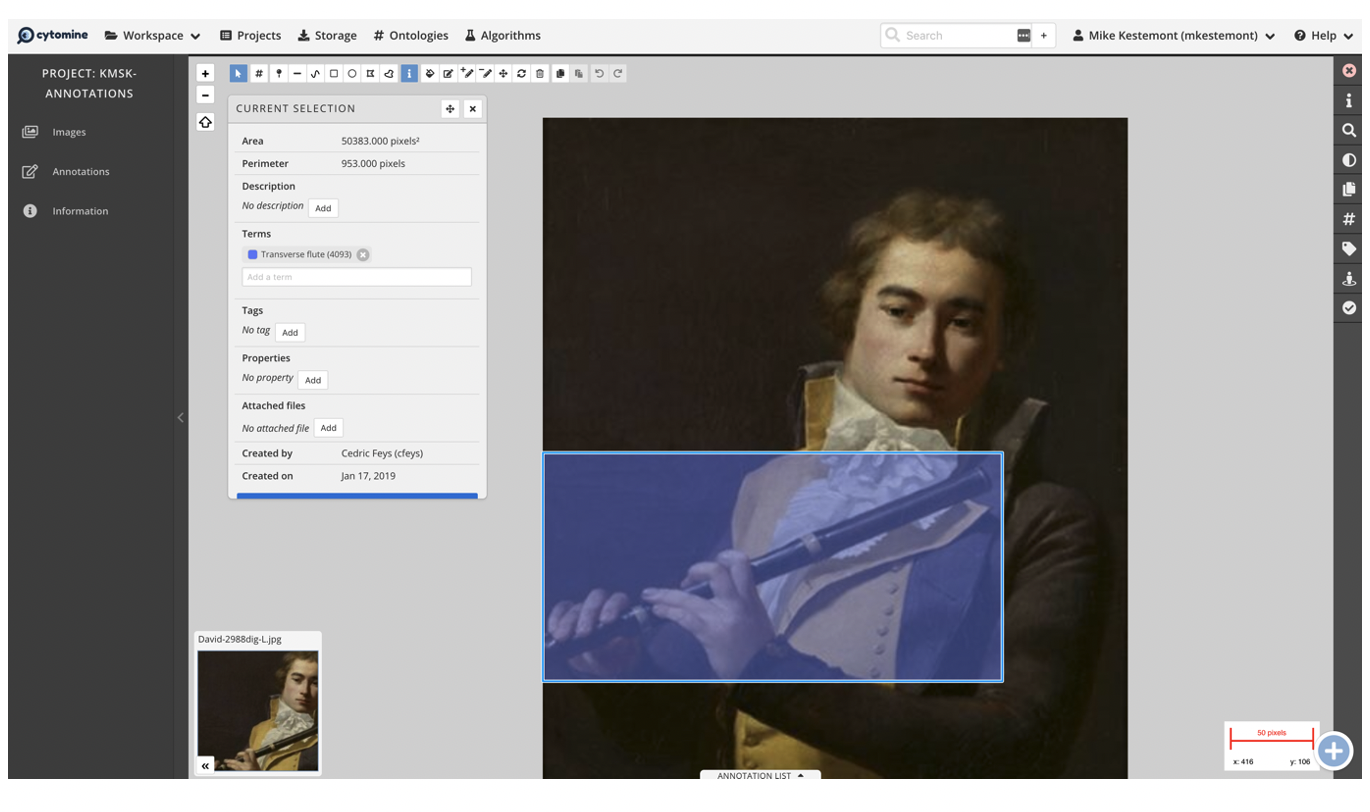

Figure 2.
Illustration of the annotation interface in Cytomine [Marée et al. 2016].
Figure 3.
Examples of difficulties encountered when annotating images.Characteristics
An important share of the annotations which we collected were singletons, i.e.
instruments that were only encountered once or twice. Although we release the full
dataset, we shall from now on only consider instruments that occurred at least three
times that allow for a conventional machine learning setup (with non-overlapping train,
validation and test sets, that include at least one instance of each label). Whereas
the
full MIMO vocabulary covers over 2,000 vocabulary terms for individual instruments,
only
a fraction of these were attested in the 4,183 images which we use below (overview
in
Table 1). Note that this table shows a considerable drop
in the original number of images that we annotated, because we only included images
that
(a) actually contained an instrument and (b) images depicting instruments that occurred
at least thrice.
93 different instrument categories appear at least thrice in the dataset. A
visualization of the heavily skewed distribution of the different instruments can
be
seen in Figure 4, where each instrument is represented
together with its corresponding MIMO code (between parentheses). This distribution
exposes two core aspects of this dataset (but also of music iconography in general):
(i)
its strong Western-European bias, which has been historically acknowledged, and which
scholars are actively trying to correct nowadays, but which is a slow process; (ii)
the
'heavy-tail' distribution associated with cultural data in general; i.e. only a fraction
of instruments, such as the lute, harp and violin, are depicted with a high frequency,
the rest occurs much more sparsely.

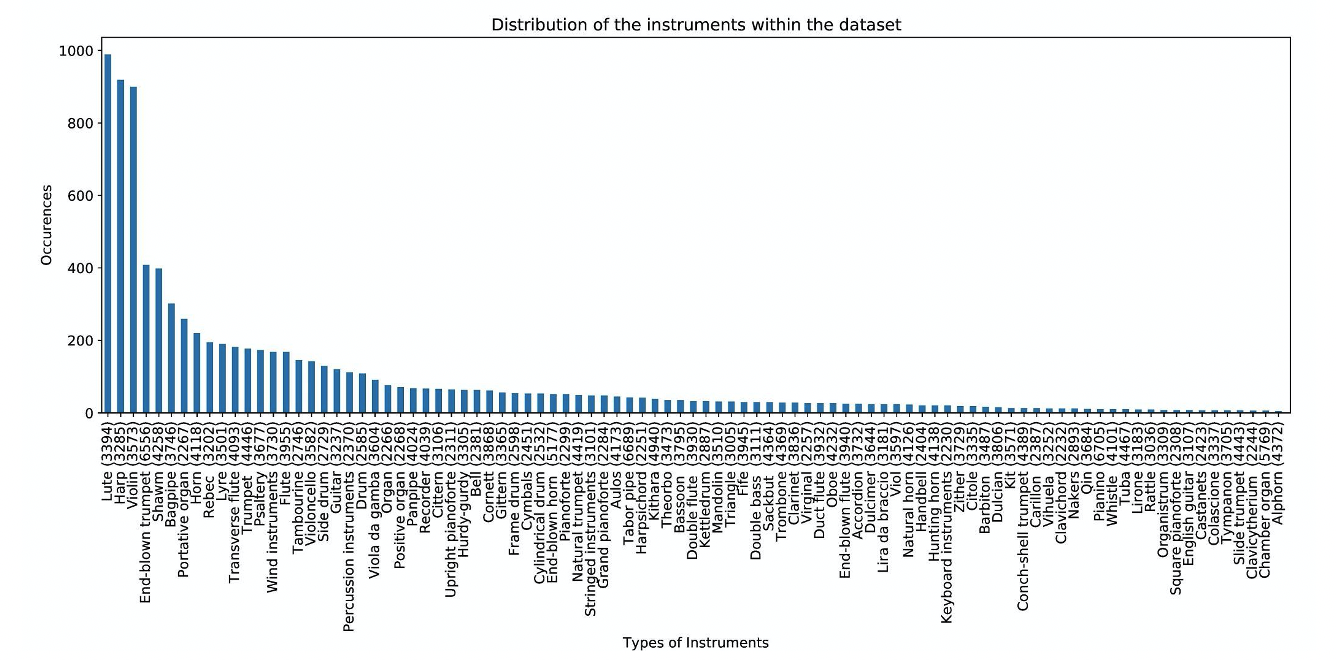

Figure 4.
Distribution of the instrument types in the full MINERVA dataset.Versions and splits
The label imbalance described in the previous paragraph is a significant issue for
machine learning methods. We therefore experiment with the data in five versions (that
are available from the repository) that correspond to object detection tasks of varying
complexity. We start by exploring whether it is possible to just detect the presence
of
an instrument in the different artworks, without the additional need of also predicting
the class of the detected instrument. We refer to this benchmark as single-instrument
object detection. We then move to three more challenging tasks in which we also aim
at
correctly classifying the content of the detected bounding boxes. We include data
for
this detection task for the top-5, the top-10 and top-20 most frequently occurring
instruments, a customary practice in the field. Finally, we also repeat this task
for
all images, but with the "hypernym" labels of the instrument categories (see Figure 5).
Each version of the dataset comes with its own training, development and testing
splits, where we offer the guarantee that at least one of the instrument classes in
the
task is represented in each of the splits. Additionally, the splits are stratified
so
that the class distribution is approximately the same in each split. The number of
images per split in each version is summarized in Table 2.
The hypernym version of the dataset is not reported in this table as it shares the
same
images and splits as the single-instrument version (they both contain all instruments).
We used a standard implementation [Pedregosa et al. 2011] for a randomized and
shuffled split at the level of images and the following, approximate proportions:
1/2
train, 1/4 dev, and 1/4 test. Images may contain multiple instruments, so that the
actual number of instruments (as opposed to images) may vary relatively strongly across
splits.
| Training-set | Dev-set | Test-set | Total | |||||
| Imag | Inst | Imag | Inst | Imag | Inst | Imag | Inst | |
| Single inst | 1857 | 4243 | 1137 | 2288 | 1189 | 2102 | 4183 | 8633 |
| Top-5 inst | 952 | 1589 | 540 | 852 | 724 | 1173 | 2216 | 3614 |
| Top-10 inst | 1227 | 2147 | 680 | 1127 | 898 | 1506 | 2805 | 4780 |
| Top-20 inst | 1471 | 2915 | 860 | 1543 | 1047 | 1838 | 3378 | 6296 |
Table 2.
Image and instruments distributions of the training, development and test sets for
the four different benchmarks presented in this paper (single instrument, top-5
instruments, top-10 instruments and top-20 instruments).
Figure 5.
Distribution of the 5 hypernym categories over the three splits in the MINERVA
dataset.Benchmark experiments
Classification
In the first benchmark experiment, we start by investigating whether convolutional
neural networks are able to correctly classify the different instruments that are
present in the dataset. That means that we focus on the image classification task
and
postpone the task of object detection to the next section. To this end, we have
extracted the various patches delineated by the bounding boxes in the detection dataset
as stand-alone instances. Note, however, that patches from the same images always
ended
in the same split, to avoid information leakage across the splits. Example patches
are
shown in Figure 6.
Figure 6.
Examples of the patches delineated by the bounding boxes, extracted from MINERVA
images for the classification experiment.Next, we tackled this task as a standard machine-learning classification problem for
which we applied a representative selection of established neural network architectures.
All of these networks were pretrained on the Rijksmuseum dataset [Mensink and Van Gemert 2014], for which the weights are publicly available [Sabatelli et al. 2018]. The tested architectures are: VGG19 [Simonyan and Zisserman 2014], Inception-V3 [Szegedy et al. 2015] and ResNet [He et al. 2016]. This approach is motivated by previous work [Sabatelli et al. 2018] which shows that when it comes to the classification images
from the domain of cultural heritage, popular neural architectures which have been
trained on the large Rijksmuseum collection, can outperform the same kind of
architectures that are pre-trained on ImageNet only. In order to maximize the final
classification performance, all network parameters get fine-tuned, using the Adam
optimizer [Kingma and Ba 2014] and minimizing the conventional categorical
cross-entropy loss function over mini-batches of 32 samples. Additionally, we applied
3
different learning rates: 0.001, 0.0001, 0.00001. In order to handle the skewed
distribution of the classes, we experimented with models including and excluding
oversampling. The training regime is interrupted as soon the validation loss does
not
decrease for five epochs in a row.
In Table 2 and Table 3 we
report the results in terms of Accuracy and F1-score for the MINERVA test sets. For
the
individual instruments, we do so for four versions of the dataset of increasing
complexity: the top-5 instruments, top-10 instruments, top-20 instruments and the
entire
dataset. Analogously we report the scores for a classification experiment where the
object detector is trained on the instrument hypernyms as class labels.
| Top-5 inst | Top-10 inst | Top-20 inst | All inst | Hypernyms | ||||||
| CNN | Acc. | F1 | Acc. | F1 | Acc. | F1 | Acc. | F1 | Acc. | F1 |
| R-Net | 68.71 | 64.10 | 52.85 | 41.55 | 30.73 | 8.45 | 26.36 | 2.08 | 72.26 | 52.66 |
| V3 | 73.66 | 70.29 | 55.51 | 44.77 | 36.51 | 19.06 | 27.02 | 6.67 | 75.80 | 57.03 |
| V19 | 48.33 | 35.92 | 37.52 | 15.22 | 33.41 | 9.87 | 20.17 | 1.72 | 66.41 | 40.35 |
Table 3.
Classification results on the MINERVA test set for the three architectures (best
results in bold).| Predicted label / Gold label | Bagpipe | E-b trumpet | Harp | Horn | Lute | Lyre | Por. organ | Rebec | Shawm | Violin |
| Bagpipe | 31 | 0 | 10 | 6 | 8 | 1 | 2 | 0 | 7 | 17 |
| E-b trumpet | 4 | 72 | 19 | 2 | 14 | 1 | 3 | 1 | 38 | 21 |
| Harp | 8 | 2 | 227 | 1 | 10 | 3 | 11 | 0 | 10 | 19 |
| Horn | 7 | 5 | 14 | 9 | 16 | 9 | 1 | 2 | 5 | 14 |
| Lute | 6 | 10 | 17 | 6 | 199 | 6 | 5 | 1 | 5 | 42 |
| Lyre | 3 | 0 | 19 | 1 | 13 | 5 | 2 | 0 | 3 | 11 |
| Por. organ | 3 | 0 | 10 | 1 | 0 | 0 | 57 | 0 | 1 | 4 |
| Rebec | 5 | 2 | 14 | 0 | 9 | 0 | 4 | 7 | 1 | 23 |
| Shawm | 4 | 11 | 25 | 2 | 11 | 2 | 4 | 6 | 40 | 13 |
| Violin | 6 | 12 | 29 | 4 | 35 | 4 | 7 | 11 | 6 | 202 |
Table 4.
Confusion matrix for the classification experiment with ResNet on the MINERVA test
set (the top-10 most frequently occurring instruments).Detection
For the second benchmark experiment we report the results that we have obtained on
the
four of the five detection benchmarks introduced in the previous section. The way
the
different instruments are distributed in their respective test sets is visually
represented in the first image of each row of Figure 7.
For our experiments, we use the popular YOLO-V3 [Redmon and Farhadi 2018] architecture
which we fully fine-tune during training. To explore the benefits that transfer learning
could bring to the artistic domain, we initialize the network with the weights that
are
obtained after training the model on the MS-COCO dataset [Lin et al. 2014]. The
network gets then trained either with the Adam optimizer [Kingma and Ba 2014] or
RMSprop[5]
over mini-batches of 8 images.
To assess the performance of the neural network, we follow the same evaluation protocol
that characterizes object detection problems in CV [Lin et al. 2014]. Each
detected bounding box is compared to the bounding box which has been annotated on
the
Cytomine platform. We only consider bounding boxes for which the confidence level
is ≥
0.05, following the protocol established in [Everingham et al. 2010]. We then
compute the "Intersection over Union" (IoU) for measuring how much the detected
bounding-boxes differ from the ground-truth ones. To assess whether a prediction can
be
considered as a "true positive" or a "false positive", we define two, increasingly
restrictive metrics: first, IoU ≥ 10 and, secondly, IoU ≥ 50. This approach is again
inspired by [Gonthier et al. 2018], where the authors report additional results
with an IoU ≥ 10 on their IconArt dataset. Table 5 lists
precision, recall and average precision (AP) scores for each detected class of each
data
version and Figure 7 visually shows the number of true and
false positive predictions in all cases. Examples of correct detections are shown
in
Figure 8.
| Instrument ≥ IoU | Precision | Recall | AP |
| Single-instrument ≥ 10 Single-instrument ≥ 50 |
0.63 0.47 |
0.42 0.31 |
0.35 0.22 |
| Stringed-Instruments ≥ 10 Stringed-Instruments ≥ 50 |
0.65 0.53 |
0.36 0.29 |
0.28 0.20 |
| Wind-Instruments ≥ 10 Wind-Instruments ≥ 50 |
0.43 0.32 |
0.07 0.05 |
0.04 0.02 |
| Percussion-Instruments ≥ 10 Percussion-Instruments ≥ 50 |
0.32 0.21 |
0.04 0.03 |
0.02 0.01 |
| Keyboard-Instruments ≥ 10 Keyboard-Instruments ≥ 50 |
0.61 0.45 |
0.11 0.08 |
0.07 0.04 |
| Electronic-Instruments ≥ 10 Electronic-Instruments ≥ 50 |
- - |
- - |
- - |
| Harp ≥ 10 Harp ≥ 50 |
0.68 0.60 |
0.62 0.54 |
0.55 0.46 |
| Lute ≥ 10 Lute ≥ 50 |
0.57 0.47 |
0.43 0.35 |
0.36 0.26 |
| Violin ≥ 10 Violin ≥ 50 |
0.37 0.26 |
0.22 0.16 |
0.12 0.07 |
| Shawm ≥ 10 Shawm ≥ 50 |
0.13 0.08 |
0.04 0.02 |
0.01 0.00 |
| End-blown trumpet ≥ 10 End-blown trumpet ≥ 50 |
0.28 0.24 |
0.04 0.03 |
0.01 0.01 |
| Harp ≥ 10 Harp ≥ 50 |
0.62 0.56 |
0.56 0.51 |
0.46 0.39 |
| Lute ≥ 10 Lute ≥ 50 |
0.55 0.47 |
0.42 0.36 |
0.33 0.25 |
| Violin ≥ 10 Violin ≥ 50 |
0.26 0.20 |
0.19 0.14 |
0.06 0.04 |
| Shawm ≥ 10 Shawm ≥ 50 |
0.17 0.17 |
0.03 0.01 |
0.00 0.00 |
| End-blown trumpet ≥ 10 End-blown trumpet ≥ 50 |
0.67 0.17 |
0.02 0.03 |
0.01 0.00 |
| Bagpipe ≥ 10 Bagpipe ≥ 50 |
0 0 |
0 0 |
0 0 |
| Portative-Organ ≥ 10 Portative-Organ ≥ 50 |
0.24 0.24 |
0.13 0.13 |
0.06 0.06 |
| Horn ≥ 10 Horn ≥ 50 |
0 0 |
0 0 |
0 0 |
| Rebec ≥ 10 Rebec ≥ 50 |
- - |
- - |
- - |
| Lyre ≥ 10 Lyre ≥ 50 |
- - |
- - |
-- - |
Table 5.
A quantitative analysis of the results obtained on the four localization
benchmarks introduced in this work. To distinguish different benchmarks in the table
we separate them by a double line. We report the precision, recall and
average-precision scores for each detected class.

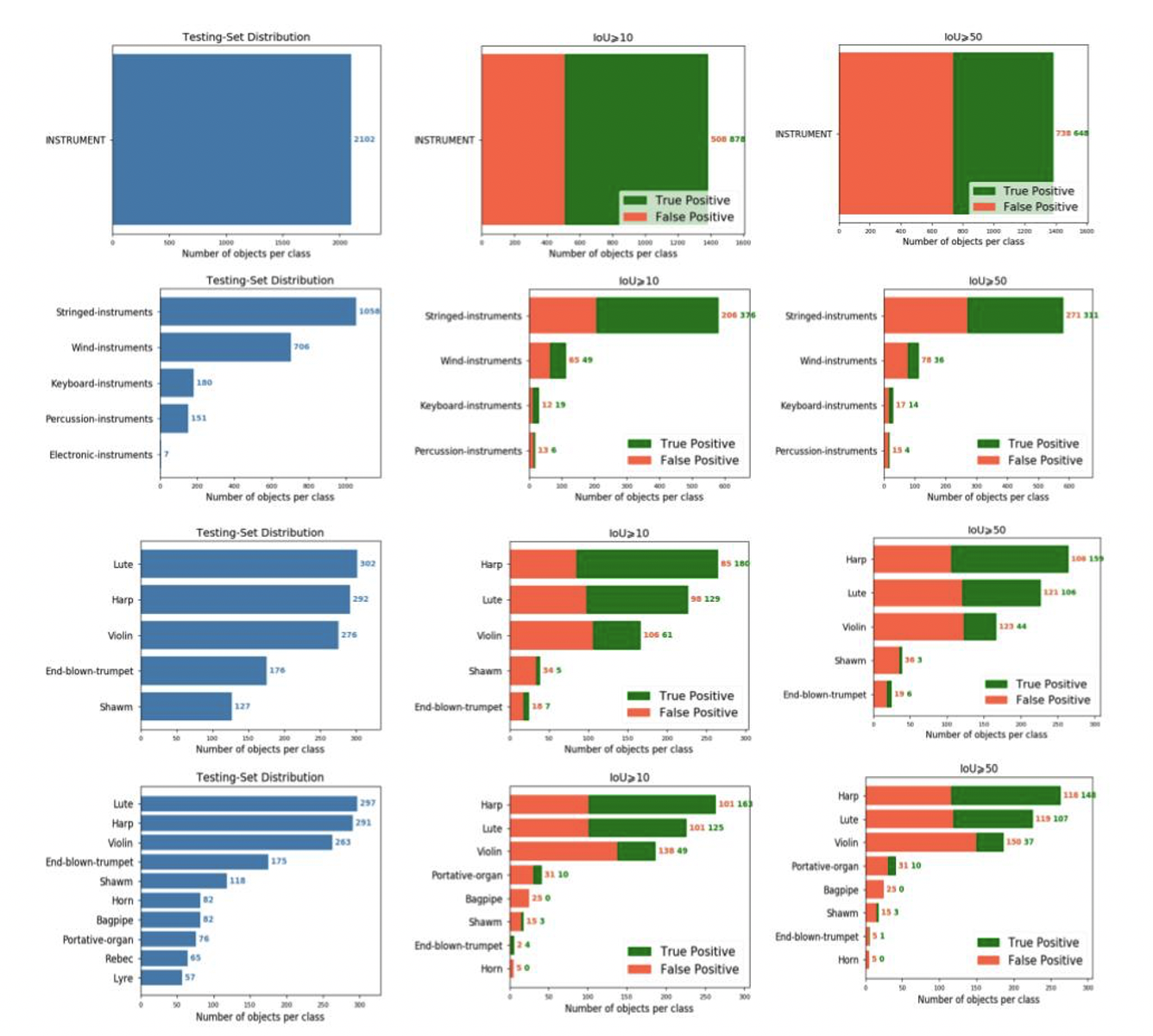

Figure 7.
A visual representation of how many instruments should be detected in the testing
sets of the four MINERVA benchmarks that are introduced in this paper (first plot
of
each row). The second and third plots represent the true and false detections that
we
have obtained with a fully fine-tuned YOLO network. Results are computed with respect
to an IoU ≥ 10 and an IoU ≥ 50.
Figure 8.
Sample visualizations of the detections obtained on the MINERVA test set for a
fully fine-tuned YOLO architecture. The first three rows report the detection of any
kind of instrument within the images (single-instrument task), while the last three
rows also report the correct classification of the detected bounding boxes.Additional experiments
As an additional stress-test, we have applied a trained object detector to two external
data sets, in order to assess how valid and performant our approach is when applied
"in
the wild". We have considered two out-of-sample datasets:
- RMFAB/RMAH: 428 out-of-sample images from the digital assets of both museum collections that are not included in the annotated material (and which are thus not included the train and validation material of the applied detector), because the available metadata did not explicitly specify that they contained depictions of musical instruments. (This collection cannot be shared due to copyright restrictions.)
- IconArt: a generic collection of 6,528 artistic images, collected from the community-curated platform WikiArt: Visual Art Encyclopedia (https://www.wikiart.org/). The IconArt subcollection was previously redistributed by [Gonthier et al. 2018]: https://wsoda.telecom-paristech.fr/downloads/dataset/.
Note that both external datasets differ in crucial aspects: RMFAB/RMAH
can be considered "out-of-sample", but "in-collection", in the sense that these images
derive from the same digital collections as many of the images represented in MINERVA.
Additionally, we can expect extremely low detection rates for this dataset, because
the
presence of musical instruments will already have been flagged in a large majority
of
cases by the museum's staff. Thus, the application of RMFAB/RMAH should
be viewed as a rather conservative stress test or sanity check, mainly checking for
images that might have been missed by annotators in the past. The IconArt dataset
is
"out-of-sample" and "out-of-collection", in the sense that these images derive from
a
variety of other sources. It is therefore fully unrestricted, and this test can be
considered a curiosity-driven validation of the method "in the wild". Importantly,
IconArt was not collected with specific attention for musical instruments, so here
too,
we can anticipate a rather low detection rate (since many works of art simply do not
feature any instruments). For all these reasons, we only evaluate the results on these
external datasets in terms of precision (as recall is much less meaningful in this
context).
Following these differences, we have applied the single-instrument detector to the
RMFAB/RMAH data and the hypernym detector to IconArt. Keeping an eye on
the feasibility of the manual inspection, we have limited the number of instances
returned by only allowing detections with a confidence score ≥ 0.20 (which is a rather
generous threshold). Next, the results have then been evaluated in terms of precision,
i.e. the number of returned image regions that actually represent musical instruments.
The results are presented in Table 6. Figure 10 showcases a number of cherry-picked successful
examples of detections from the out-of-collection IconArt images.
| Collection | Total images | Detections | True positives |
| RMFAB/RMAH | 428 | 162 | 6 |
| IconArt | 6528 | 118 | 42 |
Table 6.
Quantitative evaluation of the method on two out-of-sample datasets in terms of
precision, restricted to detections with a confidence score ≥ 0.20.Discussion
Skewed results
First and foremost, we can observe that the scores obtained across all benchmarks
are
generally much lower than those reported for other datasets in computer vision (outside
of the strict artistic domain). This drop in performance was to be expected and can
be
attributed to both the smaller size of the training data and the higher variance in
the
representation spectrum of musical instruments (across periods, materials, modes and,
artists). Secondly, one can observe large fluctuations in the identifiability and
detectability of individual instrument categories across both tasks. Not all of the
fluctuations are easy to account for.
We first consider the classification results. The confusion matrix reported in Table 4 clearly shows that the classes representing the top-4
of instruments (harp, lute, violin, and portative organ) can be learned rather
successfully, but that the performance rapidly breaks down for instrument categories
at
lower frequency ranks. Thus, while the accuracies for the top-5 experiments are
relatively satisfying, especially in terms of accuracy (V3: acc=73.66;
F1=70.29), the performance rapidly degrades for the more difficult setups. The
results for the "all" classification experiment, where every instrument category is
included no matter its frequency, are nothing less than dramatic (V3: acc=27.02;
F1=6.67) and call for in-depth further research. The significant divergence
between accuracy scores and F1 scores demonstrate that class imbalance is thus another
aspect in which MINERVA presents a more challenging benchmark than its photorealistic
counterparts.
The skewness of the class distribution in MINERVA is representative of the long-tail
distribution that we commonly encounter in cultural data. This imbalance is somewhat
alleviated in the hypernym setup, where the labels are of course much better distributed
over a much smaller number of classes (n=5). The general feasibility of
this specific task is demonstrated by the encouraging scores that can be reported
for
the Inception-V3 architecture on this task (acc=75.80; F1=57.03). Note,
additionally, that the "Electronic instruments" hypernym is included for completeness
in
this task, although the label is very infrequent and inevitably pulls down the
(macro-averaged) F1-score in this respect. Overall, we notice than the Inception-V3
architecture yields the highest performance on average for the classification task.
Similar trends can be observed for the musical instrument detection task. First of
all,
we should emphasize the encouraging scores for the "single-instrument" detection task
that simply aims to detect musical instruments (no matter their type). Here, a
relatively high precision score is obtained (prec=0.63 for IoU ≥
10), which seems on par with comparable object categories for modern
photo-realistic collections [Ren et al. 2017]. Thus, this algorithm might not be
fully apt at retrieving every single instrument from an unseen collection, but when
it
detects an instrument, we can be relatively sure that the detection deserves further
inspection by a domain expert. Equally heartening scores are evident for most of the
instrument hypernyms (with the notable exception of the under-represented "Electronic
instruments" hypernym). While these detection tasks are of course relatively coarse,
this observation nevertheless entails that this sort of detection technology can already
find useful applications in the field (see below).
When making our way down the frequency list in Table 5, we
again observe how the results break down dramatically for less common instrument
categories. The fact that an over-represented category like harps can be reasonably
well
detected (AP(IoU ≥ 10)=0.55; AP(IoU ≥ 50)=0.46), should not lead the
attention away from the fact that a state of the art object detector, such as YOLO,
fails miserably at detecting a number of iconographically highly salient instruments,
such as lyres and end-blown trumpets. At this stage, it is unclear whether this is
caused by mere class imbalance or by the higher variance in the iconographic depiction
of specific instruments. Bagpipes, for instance, occur frequently across images in
MINERVA but might display much more depiction variance than, for instance, a harp.
Saliency maps
The results from the previous question call into question which visual properties
the
neural networks find useful to exploit in the identification of instruments.
Importantly, the characteristic features exploited by a machine learning algorithm
need
not coincide with the properties that are judged most relevant by human experts and
the
comparison of both types of relevance judgements is worthwhile. In this section, we
therefore perform model criticism or "network introspection" on the basis of the
so-called "saliency maps" that can be extracted from a trained model [Boyarski et al. 2017]. These saliency maps make visible to which regions in the
original image the network paid most attention to, before arriving at its final
classification decision. All examples discussed below come from the experiments on
the
hypernym dataset for the VGG19 network. Figure 9 shows a
series of manually selected, insightful examples, including the original image (as
inputted into the network after preprocessing), as well as the saliency map obtained
for
it. We limit these examples to the representative hypernyms 'Stringed instruments'
and
'Wind instruments.'
The maps in Figure 9 vividly illustrate that the network
focuses on two broad types of regions: properties of the instruments itself (which
was
expected) but also the immediate context of the instruments, and more specifically
the
way they are operated, handled or presented by people, c.q. musicians. The
characteristics of the salient regions in the examples in Figure
9 could be described as:
Stringed instruments:
- (a) Focus on the neck of the stringed instrument, as well as the characteristic presence of tuning pins at the end of the neck;
- (b) Sensitive to the presence of stretched fingers in an unnatural position;
- (c) Typical conic shape of a lyre, with outward pointing ends connected by a bridge;
Wind instruments:
- (d) Symmetric presence of tone holes in the areophone;
- (e) Elongated, cylindric shape of the main body of the areophone with wider end;
- (f) Mirrored placement of fingers and hands (close to one another).
These characteristics strongly suggest that the way an instrument is handled (i.e.
its
immediate iconographic neighborhood) is potentially of equal importance as the shape
of
the actual instrument, an insight that we will further expand on below.

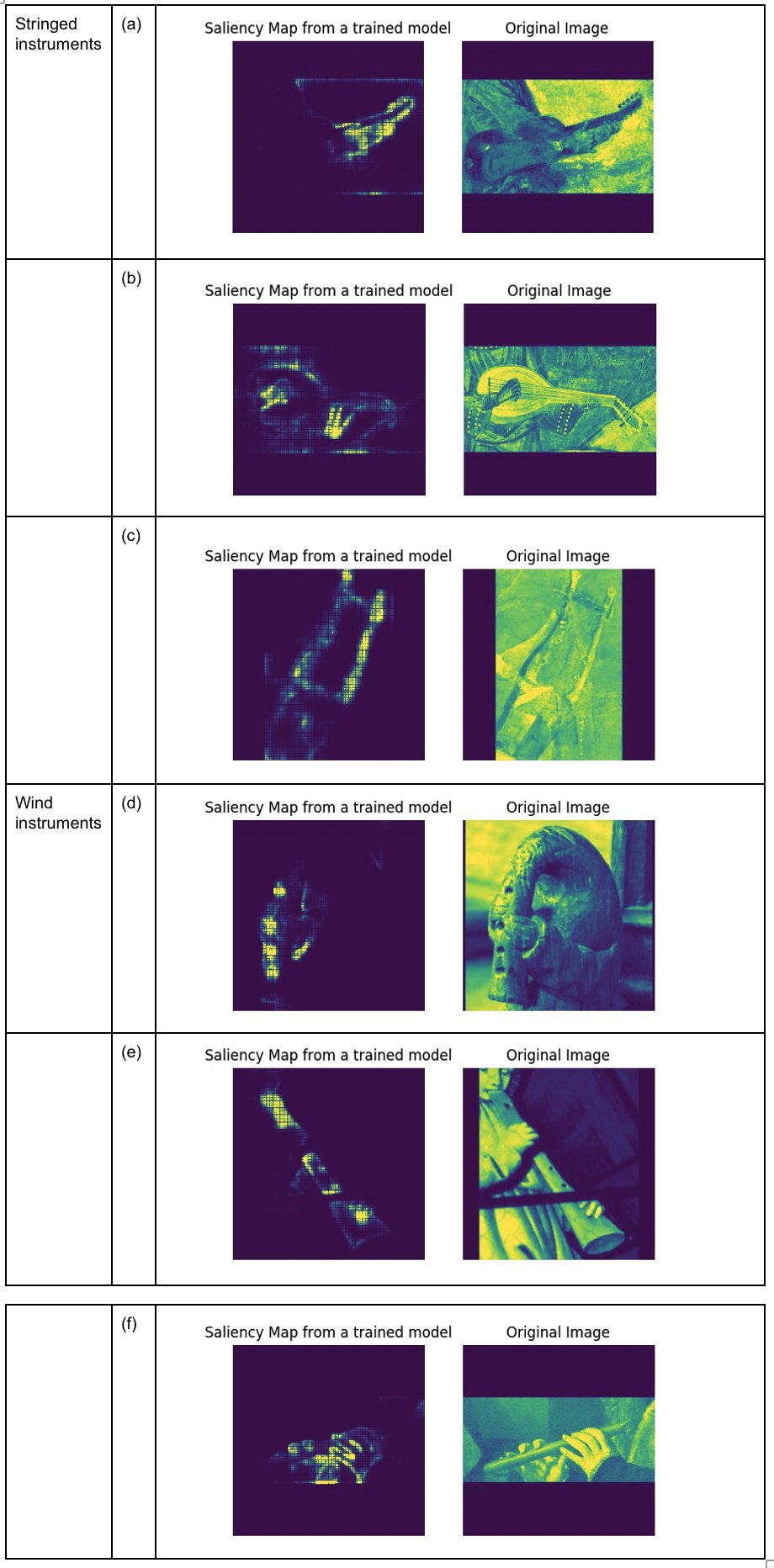

Figure 9.
Saliency maps for several stringed (subfigures (a) to (c)) and wind (subfigures
(d) to (f)) instruments.Error analysis: false positives
In this section, we offer a qualitative discussion of the false positives from the
out-of-sample tests reported in the previous section, i.e. instances where the detectors
erroneously thought to have detected an instrument. This eagerness is a known problem
of
object detectors: a system that is trained to recognize "sheep" will be inclined to
see
"sheep" everywhere. Anecdotally, people have noted how misleading contextual cues
can
indeed be a confounding factor in image analysis. One blog post for instances noted
how
a major image labeling service tagged photographs of green fields with the "sheep"
label, although no sheep whatsoever were present in the images.[6]
Eagerness-to-detect or over-association is therefore a clear first shortcoming of
this
method when applied in the wild, mainly because it was only trained in images that
actually contain musical instruments. Interestingly, the false positives come in
clusters that shed an interesting light on this issue. Below we list a representative
number of error clusters:
Figure 10.
Examples of successful detections in IconArt for "stringed instruments”.
Figure 11.
Anecdotal examples of false positive detection, divided in 7 interpretive clusters
(numbered a-g).The above categorization illustrates that the false positives are rather insightful,
mainly because the absence of an instrument highlights the contextual clues that are
at
work. Of particular relevance is the observation that the iconography surrounding
children closely resembles that of instruments. This seems related to the intimate
and
caring body language of both the caretakers and musicians in such compositions. The
immediate iconographic neighborhood of children clearly reminds the detector of the
delicacy and reverence with which instruments are portrayed and presented in historical
artworks. This delicacy and intimacy in body language can be specifically related
to the
foregrounding of fingers, the prominent portrayal of which invariably triggers the
detector, also in the absence of children. Some of these phenomena invite closer
inspection by domain experts in music iconography and suggest that serial or panoramic
analyses are a worthwhile endeavour in this field, also from the point of view of
more
hermeneutically oriented scholars.
Conclusions and future research
In this paper, we have introduced MINERVA, to our knowledge the first sizable benchmark
dataset for the identification and detection of individual musical instruments in
unrestricted, digitized images from the realm of the visual arts. Our benchmark
experiments have highlighted the feasibility of a number of tasks but also, and perhaps
primarily, the significant challenges that state-of-the-art machine learning systems
are
still confronted with on this data, such as the "long-tail" of the instruments'
distribution and the staggering variance in depiction across the images in the dataset.
We
therefore hope that this work will inspire new (and much-needed) research in this
area. At
the end of this paper, we wish to formulate some advice and concerns in this respect.
One evident direction from future research is more advanced transfer learning, where
algorithms make more efficient use of the wealth of photorealistic data that is provided,
for instance, by MIMO [Dolan 2017]. The main issue with the MIMO data in
this respect is that the bulk of these photographs are context-free (i.e. the instruments
are photographed in isolation, against a white or neutral background), which is almost
never the case in the artistic domain. Preliminary research demonstrated that this
a major
hurdle to established pretraining scenarios. Cascaded approaches, where instruments
are
detected first and only classified in a second stage might be a promising avenue here.
One crucial final remark is that AI has an amply attested tendency not only to be
sensitive to biases in the input data but also to amplify them [Zou and Schiebinger 2018].
Whereas the computational methods presented here have the potential to scale up
dramatically the scope of current research in music iconography, it also comes with
ideological dangers. The technology could further strengthen the bias on specific
canonical regions and periods in art history and lead the attention even further away
from
artistic and iconographic cultures that are already in specific need of reappraisal.
The
community will therefore have to think carefully about bias correction and mitigation.
Collecting training data in a diverse and inclusive manner, with ample attention for
resource-lower cultures should be a key strategy in future data collection campaigns.
Acknowledgements
We wish to thank Remy Vandaele for the help with Cytomine and for the fruitful
discussions related to computer vision and object detection. Special thanks go out
to our
annotators and other (former) colleagues in the museums involved: Cedric Feys, Odile
Keromnes, Lies Van De Cappelle and Els Angenon. Our gratitude also goes out to Rodolphe
Bailly for his support and advice regarding MIMO. Finally, we wish to credit our former
project member dr. Ellen van Keer with the original idea of applying object detection
to
musical instruments. This project is generously funded by the Belgian Federal Research
Agency BELSPO under the BRAIN-be program.
Notes
[1] See https://hosting.uantwerpen.be/insight/. This project is generously funded by
the Belgian Federal Research Agency BELSPO under the BRAIN-be program.
[2] All code used in this paper is publicly available from this
repository: https://github.com/paintception/MINeRVA. Likewise, the MINERVA dataset can be
obtained from this DOI on Zenodo: 10.5281/zenodo.3732580.
[5] There is no officially published reference for RMSprop, but scholars
commonly refer to this lecture from Geoffrey Hinton and colleagues: https://www.cs.toronto.edu/~tijmen/csc321/slides/lecture_slides_lec6.pdf
Works Cited
Arnold and Tilton 2019 Arnold, T., and Tilton, L., “Distant viewing: analyzing large visual corpora.”Digital Scholarship in the Humanities, 34 (2019), i3-i16.
Baldassarre 2007 Baldassarre, A. “Quo vadis music iconography? The Repertoire International d'Iconographie Musicale
as a
case study”
Fontes Artis Musicae, 54 (2007), 440-452.
Baldassarre 2008 Baldassarre, A. “Music Iconography: What is it all about? Some remarks and considerations with a
selected bibliography”
Ictus: Periódico do Programa de Pós-Graduação em Música da
UFBA, 9 (2008), 55-95.
Ballard and Brown 1982 Ballard, D. H., and Christopher M.
Brown, C. M. Computer Vision, Upper Saddle River
(1982).
Bell and Impett 2019 Bell, P., and Impett, L. “Ikonographie und Interaktion. Computergestützte Analyse von Posen in
Bildern der Heilsgeschichte”
Das Mittelalter, 24 (2019): 31–53.
Boyarski et al. 2017 Mariusz Bojarski, Anna Choromanska,
Krzysztof Choromanski, Bernhard Firner, Larry J. Ackel, Urs Muller, Philip Yeres,
Karol
Zieba, “VisualBackProp: Efficient Visualization of CNNs for Autonomous
Driving”
Proceedings of the 2018 IEEE International Conference on Robotics and
Automation (ICRA), 2018, 4701-4708. DOI: 10.1109/ICRA.2018.8461053.
Buckley 1998 Buckley, A. “Music
Iconography and the Semiotics of Visual Representation”
Music in Art, 23 (1998), 5-10.
Crowley and Zisserman 2014 Crowley, E., and Zisserman, A.
“The State of the Art: Object Retrieval in Paintings using
Discriminative Regions” In Valstar, M., French, A., and Pridmore, T. (eds),
Proceedings of the British Machine Vision Conference,
Nottingham (2014), s.p.
Dolan 2017 Dolan, E. I. “Review: MIMO:
Musical Instrument Museums Online”
Journal of the American Musicological Society, 70 (2017):
555-565.
Everingham et al. 2010 Everingham, M., Van Gool, L.,
Williams, C. K., Winn, J., and Zisserman, A. “The Pascal visual object
classes (VOC) challenge” In International journal of
computer vision, 88(2) (2010): 303–338.
Gonthier et al. 2018 Gonthier, N., Gousseau, Y., Ladjal,
S. and Bonfait, O. “Weakly supervised object detection in
artworks” In Proceedings of the European Conference on
Computer Vision (ECCV) (2018): 692–709.
Green and Ferguson 2013 Green, A., and Ferguson, S. “RIDIM: Cataloguing music iconography since 1971”
Fontes Artis Musicae, 60 (2013), 1-8.
He et al. 2016 He, K., Zhang, X., Ren, S., and Sun, J. “Deep residual learning for image recognition.”In Proceedings of the IEEE conference on computer vision and pattern
recognition, pages 770–778, 2010.
Hertzmann 2018 Hertzmann, A. “Can
Computers Create Art?” Arts, 7 (2018) doi:10.3390/arts7020018.
Hockey 2004 Hockey, S. “A History of
Humanities Computing.”In S. Schreibman, R. Siemens, and J. Unsworth (eds.),
A Companion to Digital Humanities, Oxford (2004), pp.
3–19.
Huang et al. 2017 Huang, G., Zhuang, L., Van Der Maaten,
L., and Weinberger, K. “Densely connected convolutional
networks”In Proceedings of the IEEE conference on computer
vision and pattern recognition (2017), pp. 4700– 4708.
Kingma and Ba 2014 Kingma, D. P., and Ba, J. “A method for stochastic optimization”
arXiv preprint arXiv:1412.6980, 2014.
LeCun et al. 2015 LeCun, J., Bengio, Y., and Hinton, G.,
“Deep Learning”
Nature, 521 (2015): 436–444.
Lin et al. 2014 Lin T.-Y., Maire, M., Belongie, S., Hays, J.,
Perona, P., Ramanan, D., Dollar, P and Zitnick, C. L. “Microsoft COCO:
Common objects in context” In European conference on
computer vision, pages 740–755. Springer, 2014.
Marée et al. 2016 Marée, R., Rollus, L. Stévens, B.,
Hoyoux, R., Louppe, G., Vandaele, R., Begon, J., Kainz, P., Geurts, P., and Wehenkel
“Collaborative analysis of multi-gigapixel imaging data using
Cytomine”
Bioinformatics, 32 (2016): 1395–1401.
Mensink and Van Gemert 2014 Mensink, T. and Van Gemert,
J. “The Rijksmuseum challenge: Museum-centered visual
recognition” In Proceedings of International Conference on
Multimedia Retrieval, page 451. ACM, 2014.
Pedregosa et al. 2011 Pedregosa, F., Varoquaux, G.,
Gramfort, A., Michel, V., Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,
Weiss,
R. and Dubourg, V., Vanderplas, J., Passos, A., Cournapeau, D., Brucher, M., Perrot,
M.,
and Duchesnay, E. “Scikit-learn: Machine Learning in Python”
Journal of Machine Learning Research, 12 (2011):
2825-2830.
Redmon and Farhadi 2018 Redmon, J. and Farhadi, A. “Yolov3: An incremental improvement”
arXiv preprint arXiv:1804.02767, 2018.
Ren et al. 2017 S. Ren, K. He, R. Girshick, and J. Sun,
“Faster R-CNN: Towards Real-Time Object Detection with Region
Proposal Networks”
IEEE Transactions on Pattern Analysis and Machine
Intelligence, 39 (2017), 1137-1149.
Russakovsky et al. 2015 Russakovsky, O., Deng, J.,
Su, H., Krause, J., Satheesh, S., Ma, S., Huang, Z., Karpathy, K., Khosla, A., Bernstein,
M. et al. “Imagenet large scale visual recognition challenge”
International journal of computer vision, 115(3) (2015),
211–252.
Sabatelli et al. 2018 Sabatelli, M., Kestemont, M.,
Daelemans, W. and Geurts, P. “Deep transfer learning for art
classification problems” In Proceedings of the European
Conference on Computer Vision (ECCV), pages 631–646, 2018.
Schmidhuber 2015 , Schmidhuber, J. “Deep Learning in Neural Networks: An Overview”
Neural Networks, 61 (2015), 85-117.
Seguin 2018 Seguin, B. “The Replica
Project: Building a visual search engine for art historians” XRDS: Crossroads,
The ACM Magazine for Students - Computers and Art, 24
(2018), 24-29.
Simonyan and Zisserman 2014 Simonyan, K. and Zisserman,
A. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
Strezoski and Worring 2017 Strezoski, G. and Worring,
M. “Omniart: multi-task deep learning for artistic data
analysis”
arXiv preprint arXiv:1708.00684, 2017.
Szegedy et al. 2015 Szegedy, C., Liu, W., Jia, Y.,
Sermanet, P., Reed, S., Anguelov, S., Erhan, D., Vanhoucke, V., and Rabinovich, A.
“Going deeper with convolutions” In Proceedings
of the IEEE conference on computer vision and pattern recognition (2015), pp.
1–9.
Van et al. 2015 Van Noord, N., Hendriks, E., and Postma, E.,
“Toward Discovery of the Artist's Style: Learning to recognize
artists by their artworks”
IEEE Signal Processing Magazine, 32 (2015), 46-54.
Wevers and Smits 2020 Wevers M., and Smits, T. “The visual digital turn: Using neural networks to study historical
images”
Digital Scholarship in the Humanities, 35 (2020),
194–207.
Xiang et al. 2014 Xiang, Y., Mottaghi, R., and Savarese, S.
“Beyond pascal: A benchmark for 3d object detection in the
wild” In IEEE Winter Conference on Applications of Computer
Vision, pages 75–82. IEEE, 2014.
Zou and Schiebinger 2018 Zou, J., and Schiebinger, L. “AI can be sexist and racist — it's time to make it fair”
Nature, 559 (2018): 324-326.
Recommendations
DHQ is testing out three new article recommendation methods! Please explore the links below to find articles that are related in different ways to the one you just read. We are interested in how these methods work for readers—if you would like to share feedback with us, please complete our short evaluation survey. You can also visit our documentation for these recommendation methods to learn more.
SPECTER Recommendations
Below are article recommendations generated by the SPECTER model:
- Comparative K-Pop Choreography Analysis through Deep-Learning Pose Estimation across a Large Video Corpus, 2021, Peter Broadwell, Stanford University; Timothy R. Tangherlini, University of Calfornia, Berkeley
- Computer Vision and the Creation of a Database of Printers’ Ornaments, 2021, Hazel Wilkinson, University of Birmingham, UK; James Briggs, Graphcore; Dirk Gorissen, Machine Learning Ltd.
- I was painted by...: A Case Study on the Use of CNNs for Image Classification in the Humanities, 2025, Marta Kipke, Institut für Digital Humanities, Georg-August-Universität Göttingen; Lukas Brinkmeyer, Information Systems and Machine Learning Lab, Stiftung Universität Hildesheim; Martin Langer, Institut für Digital Humanities, Georg-August-Universität Göttingen; Lars Schmidt-Thieme, Information Systems and Machine Learning Lab, Stiftung Universität Hildesheim
- Entre musique et lettres : vers une méthodologie numérique pour l’analyse de la mise en musique des poésies de Charles Baudelaire, 2018, Caroline Ardrey, The University of Birmingham; Mylène Dubiau, Université de Toulouse — Jean Jaurès; Helen Abbott, The University of Birmingham
- Transforming Information Into Knowledge: How Computational Methods Reshape Art History, 2021, Sabine Lang, Interdisciplinary Center for Scientific Computing, Heidelberg Collaboratory for Image Processing, Heidelberg University; Björn Ommer, Interdisciplinary Center for Scientific Computing, Heidelberg Collaboratory for Image Processing, Heidelberg University
DHQ Keyword Recommendations
Below are article recommendations generated by DHQ Keywords:
- Transforming Information Into Knowledge: How Computational Methods Reshape Art History, 2021, Sabine Lang, Interdisciplinary Center for Scientific Computing, Heidelberg Collaboratory for Image Processing, Heidelberg University; Björn Ommer, Interdisciplinary Center for Scientific Computing, Heidelberg Collaboratory for Image Processing, Heidelberg University
- Modelling Medieval Hands: Practical OCR for Caroline Minuscule, 2019, Brandon W. Hawk, Rhode Island College; Antonia Karaisl, Rescribe Ltd; Nick White, Rescribe Ltd
- Crowdsourcing Image Extraction and Annotation: Software Development and Case Study, 2020, Ana Jofre, SUNY Polytechnic; Vincent Berardi, Chapman University; Kathleen P.J. Brennan, University of Queensland; Aisha Cornejo, Chapman University; Carl Bennett, SUNY Polytechnic; John Harlan, SUNY Polytechnic
- Renaissance Remix. Isabella d’Este: Virtual Studiolo, 2018, Deanna Shemek, University of California, Irvine, USA; Antonella Guidazzoli, VisitLab - Cineca Interuniversity Consortium, Italy; Maria Chiara Liguori, VisitLab - Cineca Interuniversity Consortium, Italy; Giovanni Bellavia, VisitLab - Cineca Interuniversity Consortium, Italy; Daniele De Luca, VisitLab - Cineca Interuniversity Consortium, Italy; Luigi Verri, VisitLab - Cineca Interuniversity Consortium, Italy; Silvano Imboden, VisitLab - Cineca Interuniversity Consortium, Italy
- The case of the golden background, a virtual restoration and a physical reconstruction of the medieval Crucifixion of the Lindau Master (c. 1425), 2023, Liselore Tissen, Leiden University and Delft University of Technology; Sanne Frequin, Utrecht University; Ruben Wiersma, Delft University of Technology
TF-IDF Recommendations
Below are article recommendations generated by the TF-IDF Model:
- Automated Visual Content Analysis for Film Studies: Current Status and Challenges, 2020, Kader Pustu-Iren, Leibniz Information Centre of Science and Technology (TIB), Hannover, Germany; Julian Sittel, Institute for Film, Theatre and Empirical Cultural Studies, University of Mainz, Germany; Roman Mauer, Institute for Film, Theatre and Empirical Cultural Studies, University of Mainz, Germany; Oksana Bulgakowa, Institute for Film, Theatre and Empirical Cultural Studies, University of Mainz, Germany; Ralph Ewerth, Leibniz Information Centre of Science and Technology (TIB), Hannover, Germany; L3S Research Center, Leibniz University Hannover, Germany
- Deep Learning for Historical Cadastral Maps and Satellite Imagery Analysis: Insights from Styria's Franciscean Cadastre, 2024, Wolfgang Thomas Göderle, University of Innsbruck; Max Planck Institute of Geoanthropology; Fabian Rampetsreiter, University of Graz; Christian Macher, Know Center; Katrin Mauthner, Know Center; Oliver Pimas, Know Center
- Seeking Information in Spanish Historical Newspapers: The Case of Diario de Madrid (18th and 19th Centuries), 2024, Eva Sánchez-Salido, ETSI Informática, UNED; Antonio Menta, ETSI Informática, UNED; Ana García-Serrano, ETSI Informática, UNED
- Automated Transcription of Gə'əz Manuscripts Using Deep Learning, 2023, Samuel Grieggs, University of Notre Dame; Jessica Lockhart, University of Toronto; Alexandra Atiya, University of Toronto; Gelila Tilahun, University of Toronto; Suzanne Akbari, Institute for Advanced Study, Princeton, NJ; Eyob Derillo, SOAS, University of London; Jarod Jacobs, Warner Pacific College; Christine Kwon, University of Notre Dame; Michael Gervers, University of Toronto; Steve Delamarter, George Fox University; Alexandra Gillespie, University of Toronto; Walter Scheirer, University of Notre Dame
- I was painted by...: A Case Study on the Use of CNNs for Image Classification in the Humanities, 2025, Marta Kipke, Institut für Digital Humanities, Georg-August-Universität Göttingen; Lukas Brinkmeyer, Information Systems and Machine Learning Lab, Stiftung Universität Hildesheim; Martin Langer, Institut für Digital Humanities, Georg-August-Universität Göttingen; Lars Schmidt-Thieme, Information Systems and Machine Learning Lab, Stiftung Universität Hildesheim
URL: https://dhq.digitalhumanities.org/vol/15/1/000517/000517.html
DOI: https://doi.org/10.63744/nw7qvsb43mzn
Comments: dhqinfo@digitalhumanities.org
Published by: The Alliance of Digital Humanities Organizations and The Association for Computers and the Humanities
Affiliated with: Digital Scholarship in the Humanities
DHQ has been made possible in part by the National Endowment for the Humanities.
© 2021 the authors
Unless otherwise noted, the DHQ web site and all DHQ published content are published under a Creative Commons Attribution-NoDerivatives 4.0 International License. Individual articles may carry a more permissive license, as described in the footer for the individual article, and in the article’s metadata.
DOI: https://doi.org/10.63744/nw7qvsb43mzn
Comments: dhqinfo@digitalhumanities.org
Published by: The Alliance of Digital Humanities Organizations and The Association for Computers and the Humanities
Affiliated with: Digital Scholarship in the Humanities
DHQ has been made possible in part by the National Endowment for the Humanities.
© 2021 the authors
Unless otherwise noted, the DHQ web site and all DHQ published content are published under a Creative Commons Attribution-NoDerivatives 4.0 International License. Individual articles may carry a more permissive license, as described in the footer for the individual article, and in the article’s metadata.
