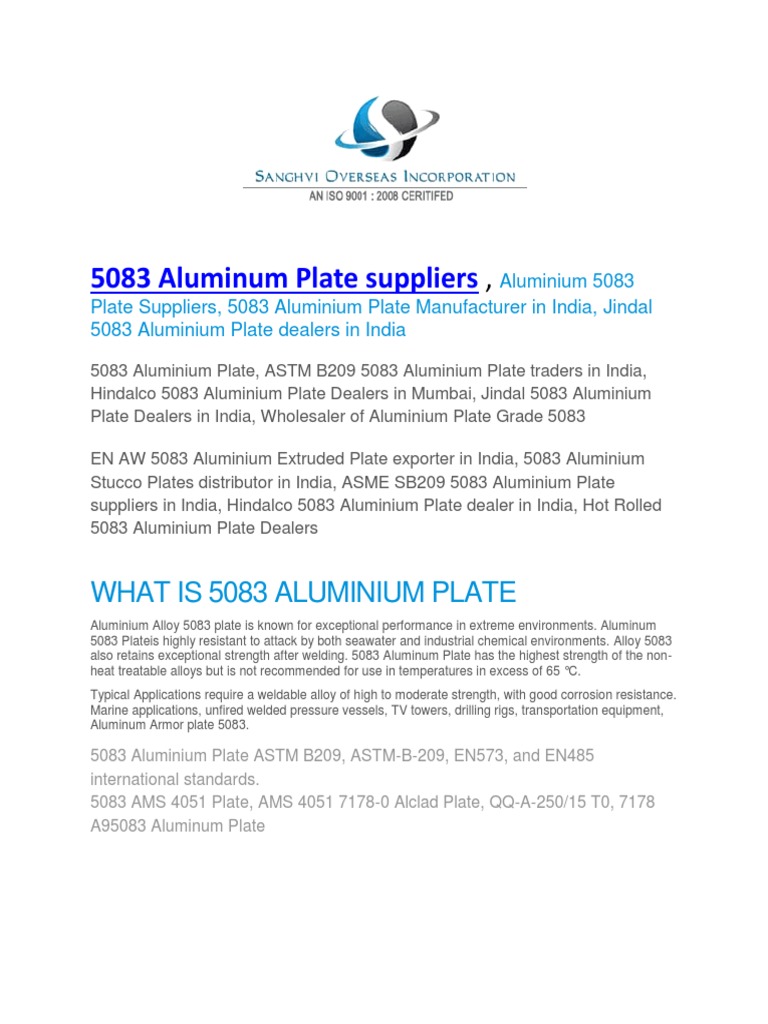

5083 Aluminum Plate suppliers , Aluminium 5083

Plate Suppliers, 5083 Aluminium Plate Manufacturer in India, Jindal

5083 Aluminium Plate dealers in India

5083 Aluminium Plate, ASTM B209 5083 Aluminium Plate traders in India,
Hindalco 5083 Aluminium Plate Dealers in Mumbai, Jindal 5083 Aluminium
Plate Dealers in India, Wholesaler of Aluminium Plate Grade 5083

EN AW 5083 Aluminium Extruded Plate exporter in India, 5083 Aluminium

Stucco Plates distributor in India, ASME SB209 5083 Aluminium Plate
suppliers in India, Hindalco 5083 Aluminium Plate dealer in India, Hot Rolled
5083 Aluminium Plate Dealers

WHAT IS 5083 ALUMINIUM PLATE

Aluminium Alloy 5083 plate is known for exceptional performance in extreme environments. Aluminum
5083 Plateis highly resistant to attack by both seawater and industrial chemical environments. Alloy 5083
also retains exceptional strength after welding. 5083 Aluminum Plate has the highest strength of the non-
heat treatable alloys but is not recommended for use in temperatures in excess of 65 C.
Typical Applications require a weldable alloy of high to moderate strength, with good corrosion resistance.
Marine applications, unfired welded pressure vessels, TV towers, drilling rigs, transportation equipment,
Aluminum Armor plate 5083.

5083 Aluminium Plate ASTM B209, ASTM-B-209, EN573, and EN485

international standards.
5083 AMS 4051 Plate, AMS 4051 7178-0 Alclad Plate, QQ-A-250/15 T0, 7178
A95083 Aluminum Plate
 STANDARD DIMENSIONS OF 5083
ALUMINIUM PLATE
Standard dimensions (a x b) of Aluminium 5083 Plate
Aluminium 5083 Plate up to 9.9 mm
2.000 x 1.000 mm
2.500 x 1.250 mm
3.000 x 1.500 mm
Oversize Aluminium 5083 Plate
4.000 x 2.000 mm
6.000 x 2.500 mm
8.000 x 2.500 mm
Other dimensions on request

5083 Aluminium Plate Suppliers in UAE, 5083 Aluminium Plate Supplier Singapore,
Dealer & Distributor of All 5083 Aluminium Alloy Plate Grades, Stockholder of 5083
Aluminium Plate 1mm

Aluminium Alloy ASTM B209 5083

Aluminium 5083 Plate Temper O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Aluminium 5083 Plate

0.5mm-150mm
Thickness

Aluminium 5083 Plate Width 500-2000mm

Aluminium 5083 Plate Length to clients requirement

Aluminium 5083 Plate Coating Polyester, Fluorocarbon, polyurethane and epoxy coating

5083 Aluminium Plate Coating

PVDF, POLYESTER(PE)
finish

Polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Aluminium 5083 Plate Surface
Mill finish, Bright finish, paper interleaved, one side film, both sides film.

Aluminium 5083 Plate Gloss Meet the customer requirement

Total coating thickness of

PVDF coating: More than 25 micron; Polyester coating: More than 18 micron
Aluminium 5083 Plate

Aluminium 5083 Plate Coating

(pencil hardness) more than 2H
hardness

Aluminium 5083 Plate Coating

No lower than1st grade
adhesive
Aluminium 5083 Plate Impact
No cracking or peeling (50kg/cm, ASTMD-2794: 1993)
resistance

Aluminium 5083 Plate Flexibility

2T
(T-bend)

Aluminium 5083 Plate MEK

More than 10
resistance

Available Aluminium 5083 Plate

1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape.
Stock Sizes

Aluminium 5083 Plate Delivery

30-60 days after receiving the prepayment
Time

Standard export package.

Aluminium 5083 Plate One pallet is about 2-3 [Link] steel belts in width and three in width.
Packaging Details One 20GP container can load about 18-20 tons Aluminium 5083 Plate.
One 40GP container can load about 24 tons Aluminium 5083 Plate

ASTM B209 Alloy 5083 Plate

Export standard, wooden pallet
Outer packing

Bottom side Aluminium 5083 Plate is coated with protective polyester material, thickness more than 6 micron

We Export Aluminium 5083 Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran,
Plate to India, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc.

5083 ALUMINIUM PLATE WEIGHT CHART

Width: 1.000 mm | Length: 2.000 mm

Product Thickness Weight

5083 Aluminium Plate 0,30 mm 0,810 Kg/m2

5083 Aluminium Plate 0,40 mm 1,080 Kg/m2

5083 Aluminium Plate 0,50 mm 1,350 Kg/m2

5083 Aluminium Plate 0,60 mm 1,620 Kg/m2

5083 Aluminium Plate 0,70 mm 1,890 Kg/m2

5083 Aluminium Plate 0,80 mm 2,160 Kg/m2

5083 Aluminium Plate 0,90 mm 2,430 Kg/m2

5083 Aluminium Plate 1,00 mm 2,700 Kg/m2

5083 Aluminium Plate 1,20 mm 3,240 Kg/m2

5083 Aluminium Plate 1,40 mm 3,780 Kg/m2

5083 Aluminium Plate 1,50 mm 4,050 Kg/m2

5083 Aluminium Plate 1,60 mm 4,320 Kg/m2

5083 Aluminium Plate 1,80 mm 4,860 Kg/m2

5083 Aluminium Plate 2,00 mm 5,400 Kg/m2

5083 Aluminium Plate 2,20 mm 5,940 Kg/m2

5083 Aluminium Plate 2,50 mm 6,750 Kg/m2

5083 Aluminium Plate 3,00 mm 8,100 Kg/m2

5083 Aluminium Plate 4,00 mm 10,800 Kg/m2

5083 Aluminium Plate 5,00 mm 13,500 Kg/m2

5083 Aluminium Plate 6,00 mm 16,200 Kg/m2

5083 Aluminium Plate 10,00 mm 27,000 Kg/m2

5083 Aluminium Plate 12,00 mm 32,400 Kg/m2

5083 Aluminium Plate 15,00 mm 40,500 Kg/m2

5083 Aluminium Plate 20,00 mm 54,000 Kg/m2

APPLICATION OF 5083 ALUMINIUM PLATE

5083 Aluminium Plate is the most widely used form of Industrial Aluminium. 5083 Aluminium Plates find
applications in various industries such as manufacturing cans and packages, transportation, home
appliances, building and construction.
 5083 ALUMINIUM PLATE CHEMICAL
COMPOSITION
Managanese
Equivalent Silicon Iron Others* Remarks
Alloy (ISS) Copper Magnesium
alloy (A.A)
(Total)

Aluminum
Old New U.S.A Min. Max. Min. Max. Min. Max. [Link]. Max Max. 99.0%
Min.

Chromium
(0.15-
0.35)Either
N8 54300 5083 0.1 4.0 4.9 0.4 0.7 0.5 1.0 0.4
Mn or Cr.
shall be
present.

ALUMINIUM 5083 PLATE MECHANICAL

PROPERTIES
Plate (according to the standard EN 485-2):
Specified thickness Rm (MPa) Rp0,2 (MPa) A% Bending radius
Hardness
State
HBS
More than Until mini maxi mini maxi A 50 A 180 90
 F >2,5 150,0 275

0,2 0,5 275 350 125 11 1,0 e 0,5 e 75

0,5 1,5 275 350 125 12 1,0 e 1,0 e 75
1,5 3,0 275 350 125 13 1,5 e 1,0 e 75
3,0 6,0 275 350 125 15 1,5 e 75
O/H111 6,0 12,5 275 350 125 16 2,5 e 75
12,5 50,0 275 350 125 15 75
50,0 80,0 270 345 115 14 73
80,0 120,0 260 110 12 70
120,0 150,0 255 105 12 69
>6,0 12,5 275 125 12 75
H112 12,5 40,0 275 125 10 75
40,0 80,0 270 125 10 73
>6,0 3,0 305 215 8 3,0 e 2,0 e 89
3,0 6,0 305 215 10 2,5 e 89
H116 6,0 12,5 305 215 12 4,0 e 89
12,5 40,0 305 215 10 89
40,0 80,0 285 200 10 83
0,2 0,5 315 375 250 3 94
0,5 1,5 315 375 250 4 94
1,5 3,0 315 375 250 5 94
H12
3,0 6,0 315 375 250 6 94
6,0 12,5 315 375 250 7 94
12,5 40,0 315 375 250 6 94
0,2 0,5 340 400 280 2 102
0,5 1,5 340 400 280 3 102
1,5 3,0 340 400 280 3 102
H14
3,0 6,0 340 400 280 3 102
6,0 12,5 340 400 280 4 102
12,5 25,0 340 400 280 3 102
0,2 0,5 360 420 300 1 108
0,5 1,5 360 420 300 2 108
H16
1,5 3,0 360 420 300 2 108
3,0 4,0 360 420 300 2 108
0,2 0,5 305 380 215 5 2,0 e 0,5 e 89
H22/H32
0,5 1,5 305 380 215 6 2,0 e 1,5 e 89
 1,5 3,0 305 380 215 7 3,0 e 2,0 e 89
3,0 6,0 305 380 215 8 2,5 e 89
6,0 12,5 305 380 215 10 3,5 e 89
12,5 40,0 305 380 215 9 89
0,2 0,5 340 400 250 4 1,0 e 99
0,5 1,5 340 400 250 5 2,0 e 99
1,5 3,0 340 400 250 6 2,5 e 99
H24/H34
3,0 6,0 340 400 250 7 3,5 e 99
6,0 12,5 340 400 250 8 4,5 e 99
12,5 25,0 340 400 250 7 99
0,2 0,5 360 420 280 2 106
0,5 1,5 360 420 280 3 106
H26/H36
1,5 3,0 360 420 280 3 106
3,0 4,0 360 420 280 3 106
Alloy UK US US Federal European
Other
Designation Specifications Specifications Specifications Specifications

5083 BS N8 Alloy 5083 AMS 4056 5083-0 QQ-A-200/4 5083 WS 3.3547 AlMg4.5Mn
A95083 Plate Plate QQ-A-250/6 5083 A-G4.5MC
Plate

AS/NZS 1734 Aluminium and aluminium alloys Flat sheet, coiled sheet and plate.
Temper 0.2% Proof Stress, MPa min Tensile Strength, MPa Elongation % min

O (annealed) 125 200 275 350 14

H112 125 275 10

H116 215 305 10

H321 215 295 305 385 10

For information only, proof stress is not specified or measured except by prior agreement
Minimum elongation, actual value depends on thickness thicker gauges have higher elongation

Equivalent Specifications
USA: AA 5083; UK: BS 5083; Germany: DIN AlMg4.5Mn; Europe: EN AW-A 5083; Japan: 5083; JIS
A5083P; France: NF A5083; ISO: Al Mg4.5Mn0.7.
The properties in this data sheet meet Australian/New Zealand Standard AS/NZS 1734:1997 Aluminium
and aluminium alloys Flat sheet, coiled sheet and plate (equivalent to BS EN 573-1).
Alloy 5083 can be supplied to meet other national standards.
Typical Mechanical Properties
 Temper Tensile Strength Yield Strength Elongat

KSI KSI %

O (annealed) 42 21 14

H112 43 23 10

H116 46 33 10

H321 46 33 10

Aluminum Alloy Heat Treatment Temper Designations

Basic Aluminum Heat Treatment Designations

F As Fabricated
O Annealed
H Strain Hardened
W Solution Heat Treated
T Solution Heat Treated

Heat Treating T Temper Codes for Aluminium 5083 Plates

T1 Cooled from an elevated temperature shaping process and naturally aged to a substantially
stable condition.
T2 Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a
substantially stable condition.
T3 Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
T4 Solution heat treated, and naturally aged to a substantially stable condition.
T5 Cooled from an elevated temperature shaping process then artificially aged.
T6 Solution heat treated then artificially aged.
T7 Solution heat treated then overaged/stabilized.
T8 Solution heat treated, cold worked, then artificially aged.
T9 Solution heat treated, artificially aged, then cold worked.
T10 Cooled from an elevated temperature shaping process, cold worked, then artificially aged.

Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by
processes such as stretching, compressing, or a combination.

H Temper Strain Hardening Codes for Aluminium 5083 Plates

H1 Strain hardened only

H2 Strain hardened and partially annealed
H3 Strain hardened and stabilized
H4 Strain hardened and lacquered or painted. This assumes that thermal affects from the
coating process affect the strain hardening; seldom encountered.
