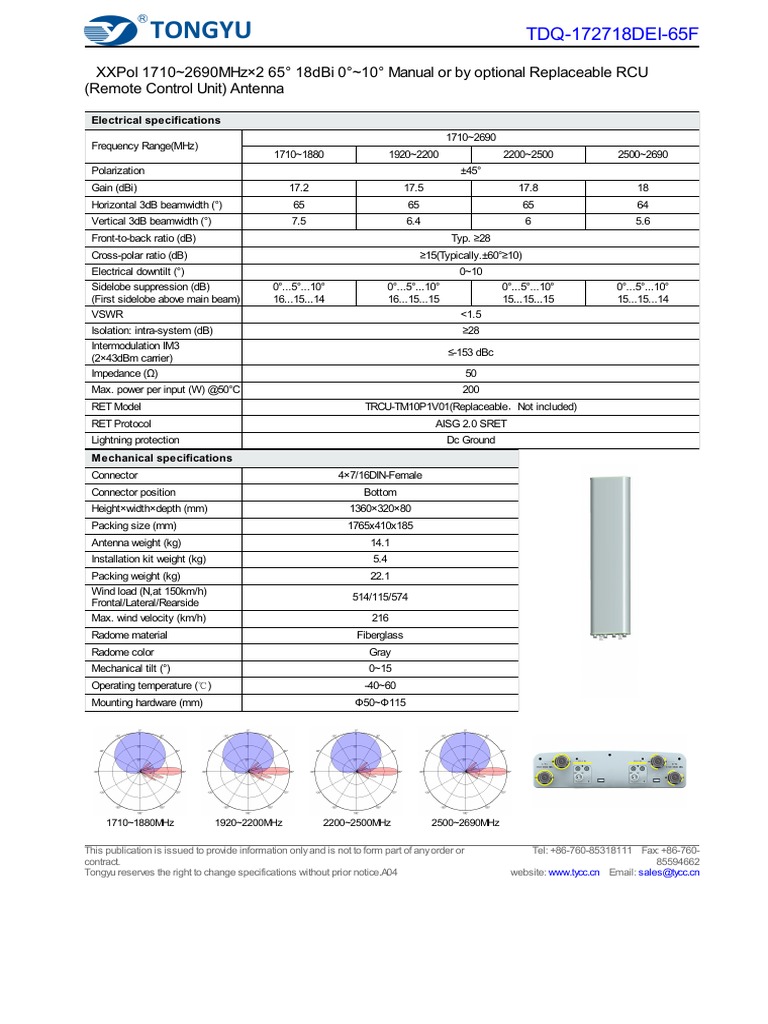

TONGYU TDQ-172718DEI-65F
XXPol 1710~2690MHz×2 65° 18dBi 0°~10° Manual or by optional Replaceable RCU
(Remote Control Unit) Antenna
Electrical specifications
1710~2690
Frequency Range(MHz)
1710~1880 1920~2200 2200~2500 2500~2690
Polarization ±45°
Gain (dBi) 17.2 17.5 17.8 18
Horizontal 3dB beamwidth (°) 65 65 65 64
Vertical 3dB beamwidth (°) 7.5 6.4 6 5.6
Front-to-back ratio (dB) Typ. ≥28
Cross-polar ratio (dB) ≥15(Typically.±60°≥10)
Electrical downtilt (°) 0~10
Sidelobe suppression (dB) 0°...5°...10° 0°...5°...10° 0°...5°...10° 0°...5°...10°
(First sidelobe above main beam) 16...15...14 16...15...15 15...15...15 15...15...14
VSWR <1.5
Isolation: intra-system (dB) ≥28
Intermodulation IM3 ≤-153 dBc
(2×43dBm carrier)
Impedance (Ω) 50
Max. power per input (W) @50°C 200
RET Model TRCU-TM10P1V01(Replaceable，Not included)
RET Protocol AISG 2.0 SRET
Lightning protection Dc Ground
Mechanical specifications
Connector 4×7/16DIN-Female
Connector position Bottom
Height×width×depth (mm) 1360×320×80
Packing size (mm) 1765x410x185
Antenna weight (kg) 14.1
Installation kit weight (kg) 5.4
Packing weight (kg) 22.1
Wind load (N,at 150km/h)
514/115/574
Frontal/Lateral/Rearside
Max. wind velocity (km/h) 216
Radome material Fiberglass
Radome color Gray
Mechanical tilt (°) 0~15
Operating temperature (℃) -40~60
Mounting hardware (mm) Ф50~Ф115

1710~1880MHz 1920~2200MHz 2200~2500MHz 2500~2690MHz

This publication is issued to provide information only and is not to form part of any order or Tel: +86-760-85318111 Fax: +86-760-
contract. 85594662
Tongyu reserves the right to change specifications without prior notice.A04 website: www.tycc.cn Email: [email protected]
