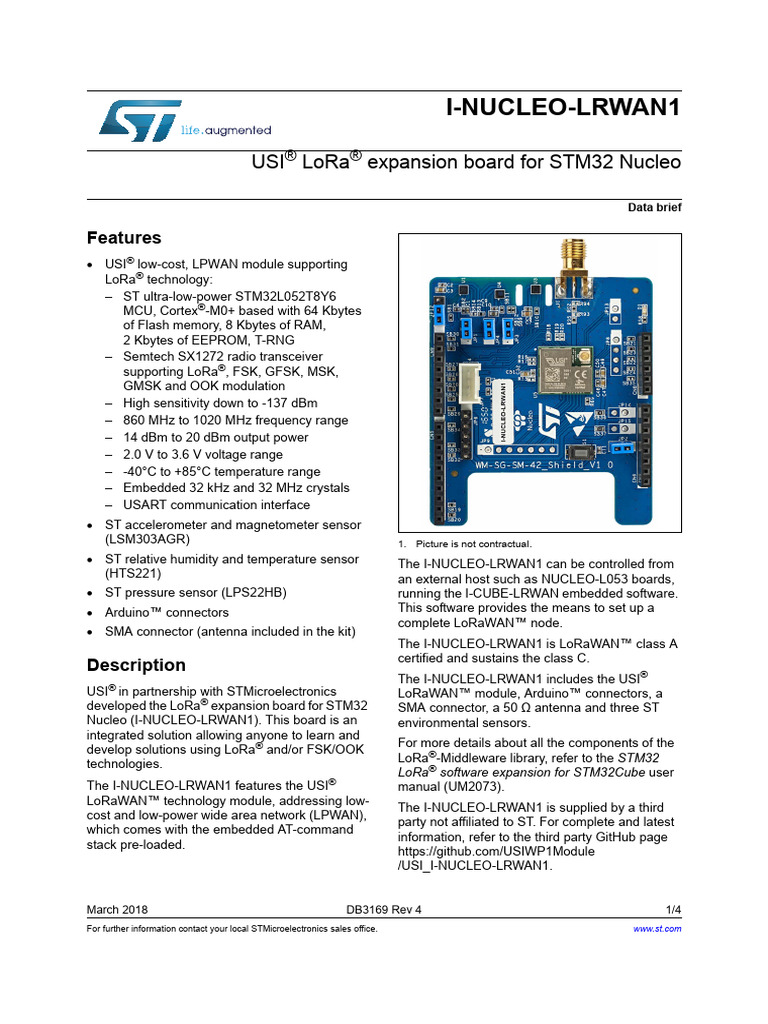

I-NUCLEO-LRWAN1
USI® LoRa® expansion board for STM32 Nucleo
Data brief
Features
• USI® low-cost, LPWAN module supporting
LoRa® technology:
– ST ultra-low-power STM32L052T8Y6
MCU, Cortex®-M0+ based with 64 Kbytes
of Flash memory, 8 Kbytes of RAM,
2 Kbytes of EEPROM, T-RNG
– Semtech SX1272 radio transceiver
supporting LoRa®, FSK, GFSK, MSK,
GMSK and OOK modulation
– High sensitivity down to -137 dBm
– 860 MHz to 1020 MHz frequency range
– 14 dBm to 20 dBm output power
– 2.0 V to 3.6 V voltage range
– -40°C to +85°C temperature range
– Embedded 32 kHz and 32 MHz crystals
– USART communication interface
• ST accelerometer and magnetometer sensor
(LSM303AGR) 1. Picture is not contractual.
• ST relative humidity and temperature sensor The I-NUCLEO-LRWAN1 can be controlled from
(HTS221) an external host such as NUCLEO-L053 boards,
• ST pressure sensor (LPS22HB) running the I-CUBE-LRWAN embedded software.
• Arduino™ connectors This software provides the means to set up a
complete LoRaWAN™ node.
• SMA connector (antenna included in the kit)
The I-NUCLEO-LRWAN1 is LoRaWAN™ class A
certified and sustains the class C.
Description
The I-NUCLEO-LRWAN1 includes the USI®
®
USI in partnership with STMicroelectronics LoRaWAN™ module, Arduino™ connectors, a
developed the LoRa® expansion board for STM32 SMA connector, a 50 Ω antenna and three ST
Nucleo (I-NUCLEO-LRWAN1). This board is an environmental sensors.
integrated solution allowing anyone to learn and
For more details about all the components of the
develop solutions using LoRa® and/or FSK/OOK
LoRa®-Middleware library, refer to the STM32
technologies.
LoRa® software expansion for STM32Cube user
The I-NUCLEO-LRWAN1 features the USI® manual (UM2073).
LoRaWAN™ technology module, addressing low-
The I-NUCLEO-LRWAN1 is supplied by a third
cost and low-power wide area network (LPWAN),
party not affiliated to ST. For complete and latest
which comes with the embedded AT-command
information, refer to the third party GitHub page
stack pre-loaded.
[Link]
/USI_I-NUCLEO-LRWAN1.
March 2018 DB3169 Rev 4 1/4
For further information contact your local STMicroelectronics sales office. [Link]
System architecture I-NUCLEO-LRWAN1
System architecture
Figure 1. I-NUCLEO-LRWAN1 architecture
&8 $'&± 67
5 ) 0 BQ5
'B 'B '$ &8 () 27
9' 9' 9' 0 95 %2
2
0&
5), 63, 670/7<
5)6:,7&+
$QWHQQD
6;
5(6(7 .E\WH)ODVK
8)/
95B3$
3$B%2267
0+]±0+] ',2
.E\WH5$0
$177;5;
.E\WH((3520 83
:.
2
',
6:
;7$/
0+] .
' &/
*1 ;7$/ 6:
N+]
B JB JB
B 7
EXJ EX EX HEXJ 7,0 8$5 ,&
'H ' H ' H ' /3
06Y 9
General information
The I-NUCLEO-LRWAN1 expansion board features an STMicroelectronics ultra-low-power
Arm®(a) Cortex®-M0+ based microcontroller.
a. Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
2/4 DB3169 Rev 4
I-NUCLEO-LRWAN1 Revision history
Revision history
Table 1. Document revision history
Date Revision Changes
6-Feb-2017 1 Initial release.
Updated title and description.
14-Feb-2017 2
Ordering information removed.
9-Aug-2017 3 Updated Description.
Updated USI® GitHub link in Description. Updated
20-Mar-2018 4
Figure 1. Added the General information section.
