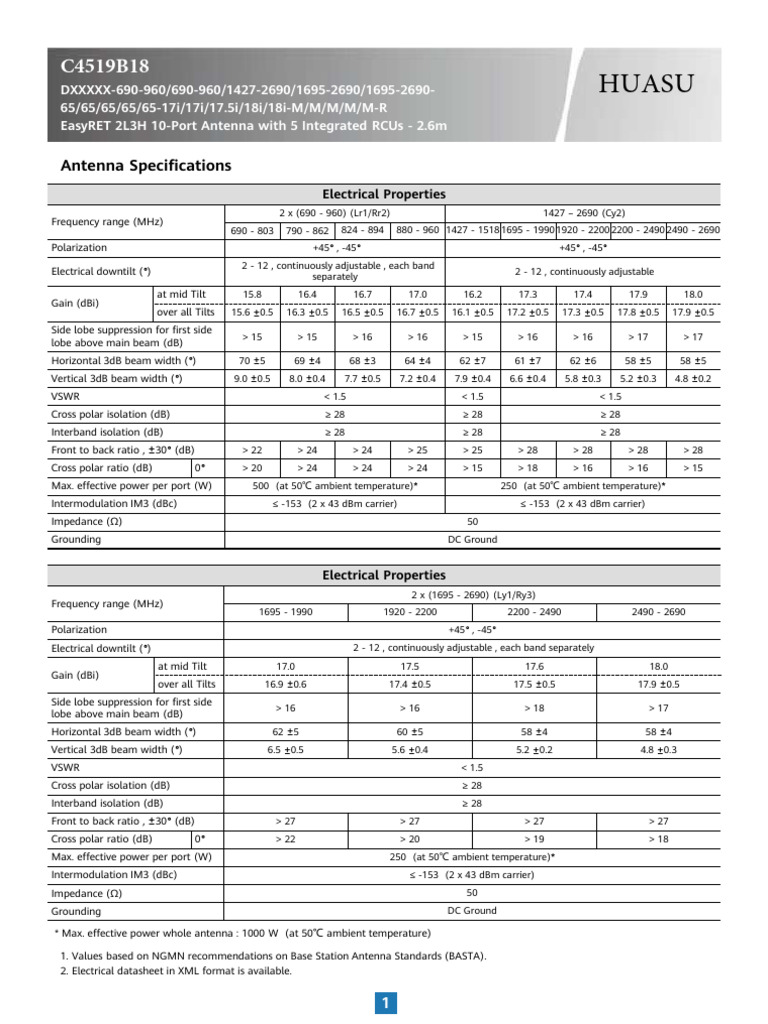

C4519B18

DXXXXX-690-960/690-960/1427-2690/1695-2690/1695-2690- HUASU
65/65/65/65/65-17i/17i/17.5i/18i/18i-M/M/M/M/M-R
EasyRET 2L3H 10-Port Antenna with 5 Integrated RCUs - 2.6m

Antenna Specifications
Electrical Properties
2 x (690 - 960) (Lr1/Rr2) 1427 – 2690 (Cy2)
Frequency range (MHz)
690 - 803 790 - 862 824 - 894 880 - 960 1427 - 1518 1695 - 1990 1920 - 2200 2200 - 2490 2490 - 2690
Polarization +45° , -45° +45° , -45°
2 - 12 , continuously adjustable , each band
Electrical downtilt (°) 2 - 12 , continuously adjustable
separately
at mid Tilt 15.8 16.4 16.7 17.0 16.2 17.3 17.4 17.9 18.0
Gain (dBi)
over all Tilts 15.6 ±0.5 16.3 ±0.5 16.5 ±0.5 16.7 ±0.5 16.1 ±0.5 17.2 ±0.5 17.3 ±0.5 17.8 ±0.5 17.9 ±0.5
Side lobe suppression for first side
> 15 > 15 > 16 > 16 > 15 > 16 > 16 > 17 > 17
lobe above main beam (dB)
Horizontal 3dB beam width (°) 70 ±5 69 ±4 68 ±3 64 ±4 62 ±7 61 ±7 62 ±6 58 ±5 58 ±5
Vertical 3dB beam width (°) 9.0 ±0.5 8.0 ±0.4 7.7 ±0.5 7.2 ±0.4 7.9 ±0.4 6.6 ±0.4 5.8 ±0.3 5.2 ±0.3 4.8 ±0.2
VSWR < 1.5 < 1.5 < 1.5
Cross polar isolation (dB) ≥ 28 ≥ 28 ≥ 28
Interband isolation (dB) ≥ 28 ≥ 28 ≥ 28
Front to back ratio , ±30° (dB) > 22 > 24 > 24 > 25 > 25 > 28 > 28 > 28 > 28
Cross polar ratio (dB) 0° > 20 > 24 > 24 > 24 > 15 > 18 > 16 > 16 > 15
Max. effective power per port (W) 500 (at 50℃ ambient temperature)* 250 (at 50℃ ambient temperature)*
Intermodulation IM3 (dBc) ≤ -153 (2 x 43 dBm carrier) ≤ -153 (2 x 43 dBm carrier)
Impedance (Ω) 50
Grounding DC Ground

Electrical Properties
2 x (1695 - 2690) (Ly1/Ry3)
Frequency range (MHz)
1695 - 1990 1920 - 2200 2200 - 2490 2490 - 2690
Polarization +45° , -45°
Electrical downtilt (°) 2 - 12 , continuously adjustable , each band separately
at mid Tilt 17.0 17.5 17.6 18.0
Gain (dBi)
over all Tilts 16.9 ±0.6 17.4 ±0.5 17.5 ±0.5 17.9 ±0.5
Side lobe suppression for first side
> 16 > 16 > 18 > 17
lobe above main beam (dB)
Horizontal 3dB beam width (°) 62 ±5 60 ±5 58 ±4 58 ±4
Vertical 3dB beam width (°) 6.5 ±0.5 5.6 ±0.4 5.2 ±0.2 4.8 ±0.3
VSWR < 1.5
Cross polar isolation (dB) ≥ 28
Interband isolation (dB) ≥ 28
Front to back ratio , ±30° (dB) > 27 > 27 > 27 > 27
Cross polar ratio (dB) 0° > 22 > 20 > 19 > 18
Max. effective power per port (W) 250 (at 50℃ ambient temperature)*
Intermodulation IM3 (dBc) ≤ -153 (2 x 43 dBm carrier)
Impedance (Ω) 50
Grounding DC Ground

* Max. effective power whole antenna : 1000 W (at 50℃ ambient temperature)

1. Values based on NGMN recommendations on Base Station Antenna Standards (BASTA).

2. Electrical datasheet in XML format is available.

1
 C4519B18
DXXXXX-690-960/690-960/1427-2690/1695-2690/1695-2690- HUASU
65/65/65/65/65-17i/17i/17.5i/18i/18i-M/M/M/M/M-R
EasyRET 2L3H 10-Port Antenna with 5 Integrated RCUs - 2.6m

106
Mechanical Properties
Antenna dimensions (H x W x D) (mm) 2550 x 469 x 206
Packing dimensions (H x W x D) (mm) 2805 x 535 x 285

(604)
Antenna weight (kg) 44.0
Clamps weight (kg) 6.3 (2 units)
Antenna packing weight (kg) 68 (Included clamps)
Mast diameter supported (mm) 50 - 115
Radome material Fiberglass
Radome colour Light grey

2550
1873
Operational temperature (℃) -40 .. +65
Frontal: 780 (at 150 km/h)
Wind load (N) Lateral: 485 (at 150 km/h)
Maximum: 1035 (at 150 km/h)
Max. operational wind speed (km/h) 200
Survival wind speed (km/h) 250
Connector 10 x 4.3-10 Female

73
Connector position Bottom

Accessories Unit: mm
Item Model Description Weight Units per antenna

Downtilt kit ASMDT0H01 Mechanical downtilt: 0 - 8° 3.1 kg 1 (Separate packing)

Pattern sample for reference

690 - 960 MHz 1427 - 2690 MHz 1695 - 2690 MHz

(Lr1/Rr2) (Cy2) (Ly1/Ry3)

2
 C4519B18
DXXXXX-690-960/690-960/1427-2690/1695-2690/1695-2690- HUASU
65/65/65/65/65-17i/17i/17.5i/18i/18i-M/M/M/M/M-R
EasyRET 2L3H 10-Port Antenna with 5 Integrated RCUs - 2.6m

Antenna Information Management Module (AIMM) Specifications

Properties
RET type Integrated RET
RET protocols* AISG 2.0 / 3GPP
Input voltage range (V) 10 - 30 DC
< 0.5 (when the motor does not work, 12 V)
Power consumption (W) < 4.5 (when the motor is working, 12 V)
< 10 (when the motor is starting up or shutting down, 12 V)
Adjustment time (full range) (s) Typ. 40 (typically, depending on antenna type)
4 x 8 pin connector according to IEC 60130-9
RET connector
Daisy chain in: Male / Daisy chain out: Female
1 2 3 4 5 6 7 8
Pin assignment according AISG
DC n/c RS-485B n/c RS-485A DC DC return n/c
2.5 (10/350 μs)
Lightning protection (kA)
10 (8/20 μs)

* Please confirm the AISG protocol of primary station is compatible with RET antenna protocol interface. The protocol of RET antenna
software interface is switchable between AISG 2.0/3GPP and AISG 1.1 with a vendor defined command. For more details about protocol
switching function, contact Huawei before system installation.

Standards: EN/IEC 60950-1(Safety), EN/IEC 60950-22(Safety – Equipment installed outdoor), EN 55032 (Emission),
EN/IEC 62368-1(Safety), ETSI EN 301 489, FCC Part15, ICES-003
Certification: CE, FCC, IC, RCM, RoHS, REACH, WEEE

Integrated RET S/N:

HWxxxx……Lr1
HWxxxx……Ly1
HWxxxx……Cy2
HWxxxx……Ry3
y1 y2 y3

HWxxxx……Rr2 r1 r2

r - Red y - Yellow
L - Left array R - Right array C - Center array

NOTE

1. Facilities, such as towers and poles, must bear the weight and wind load of antennas.
2. HUAWEI ‘s standard brackets and accessories must be used for any installation.
3. The antenna working environment must meet the requirements specified in the datasheet.
4. Only qualified personnel are allowed to perform installation. Installation tools and procedures must conform to requirements
described in the antenna installation guide.
5. In the effort to improve our products, all specifications are subject to change without notice.

3 Issue: 2020-11-27
