Clean Architecture is widely used in many projects alongside DDD(Domain-driven Design) and MSA(Microservice Architecture). This project is an idea-driven initiative that leverages TypeScript, a monorepo setup, and Clean Architecture to effectively scale and maintain various web client services that share the same domain.
However, if the project is a small-scale application that primarily focuses on simple UI, or if the API server is tightly coupled with the client, adopting Clean Architecture might negatively impact maintainability due to increased code complexity and boilerplate code.
In this sample project, a monorepo is structured using Workspaces provided by Yarn. The monorepo consists of the Domains and Adapters layers as separate packages, while each service is also packaged individually. These services directly utilize, extend, or inherit elements from the Domains and Adapters layers to build their respective implementations.
+ My English is not perfect, so please bear with me.

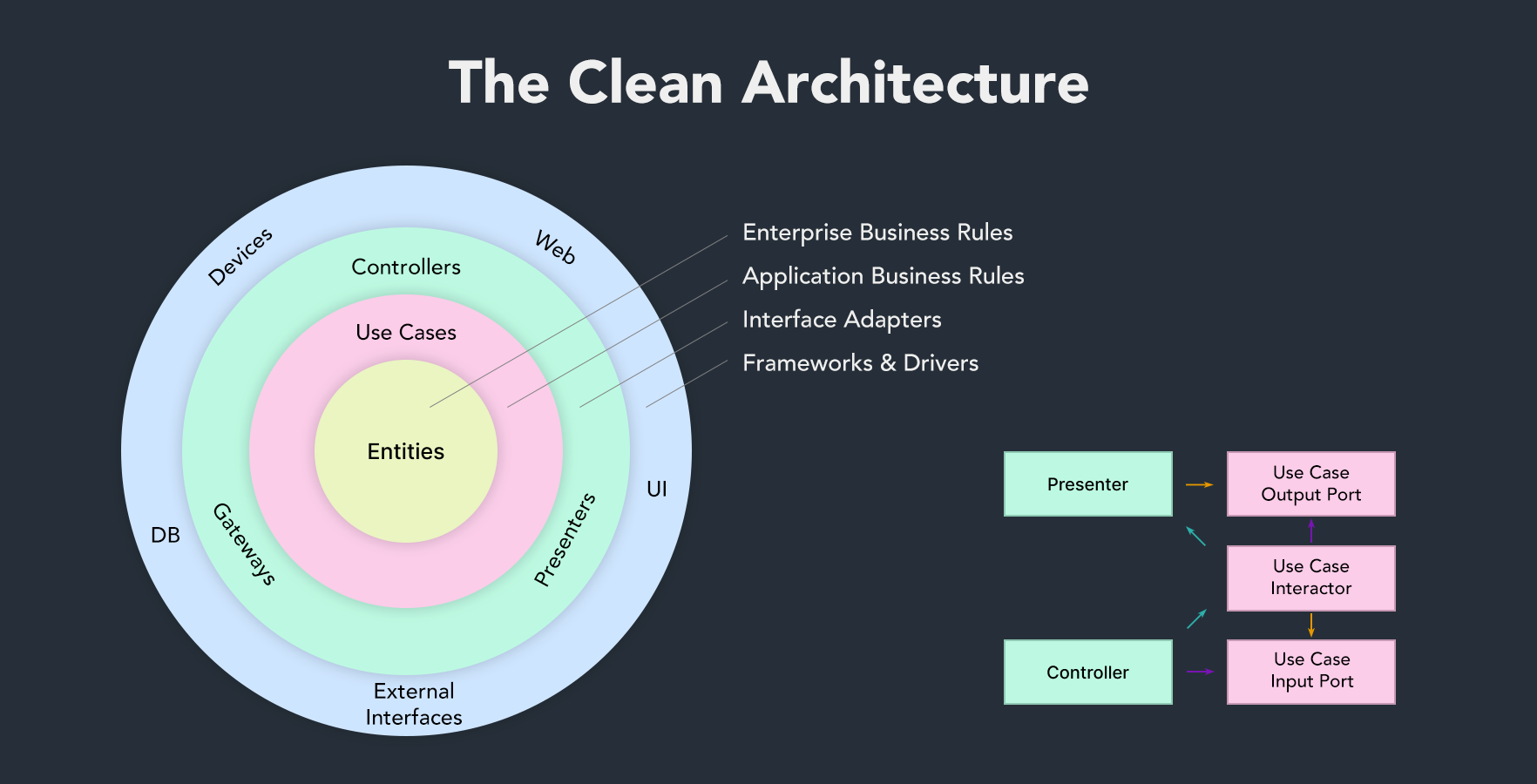

As with many architectures, the primary goal of Clean Architecture is to separate concerns. It divides layers according to each concern, designs around the domain rather than detailed implementations, and ensures the inner layers do not depend on external elements like frameworks, databases, or UIs.
- Separate the detailed implementation area and the domain area.
- The architecture does not depend on the framework.
- The outer layers can depend on the inner layers, but the inner layers cannot depend on the outer layers.
- Both high-level and low-level modules depend on abstractions.

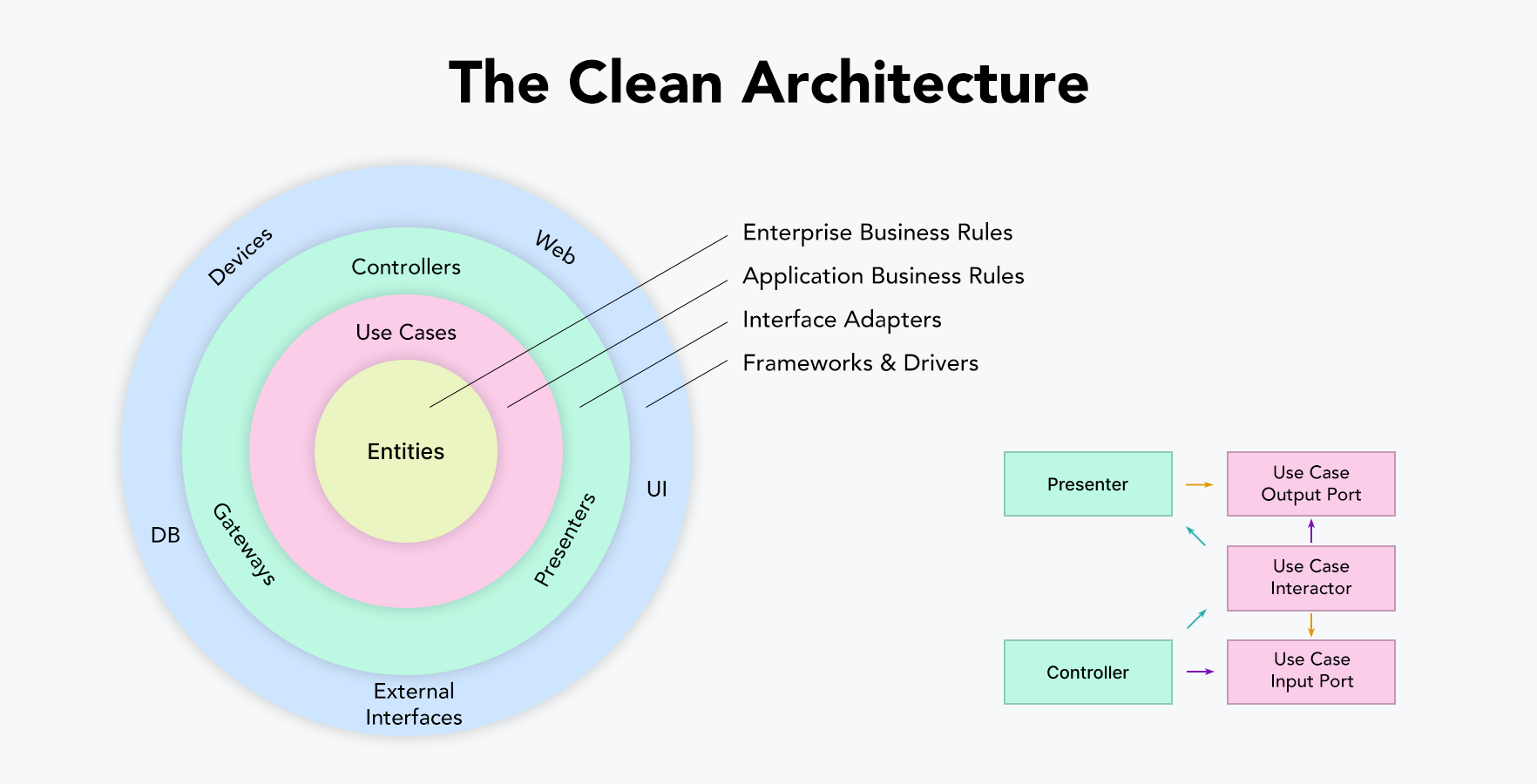

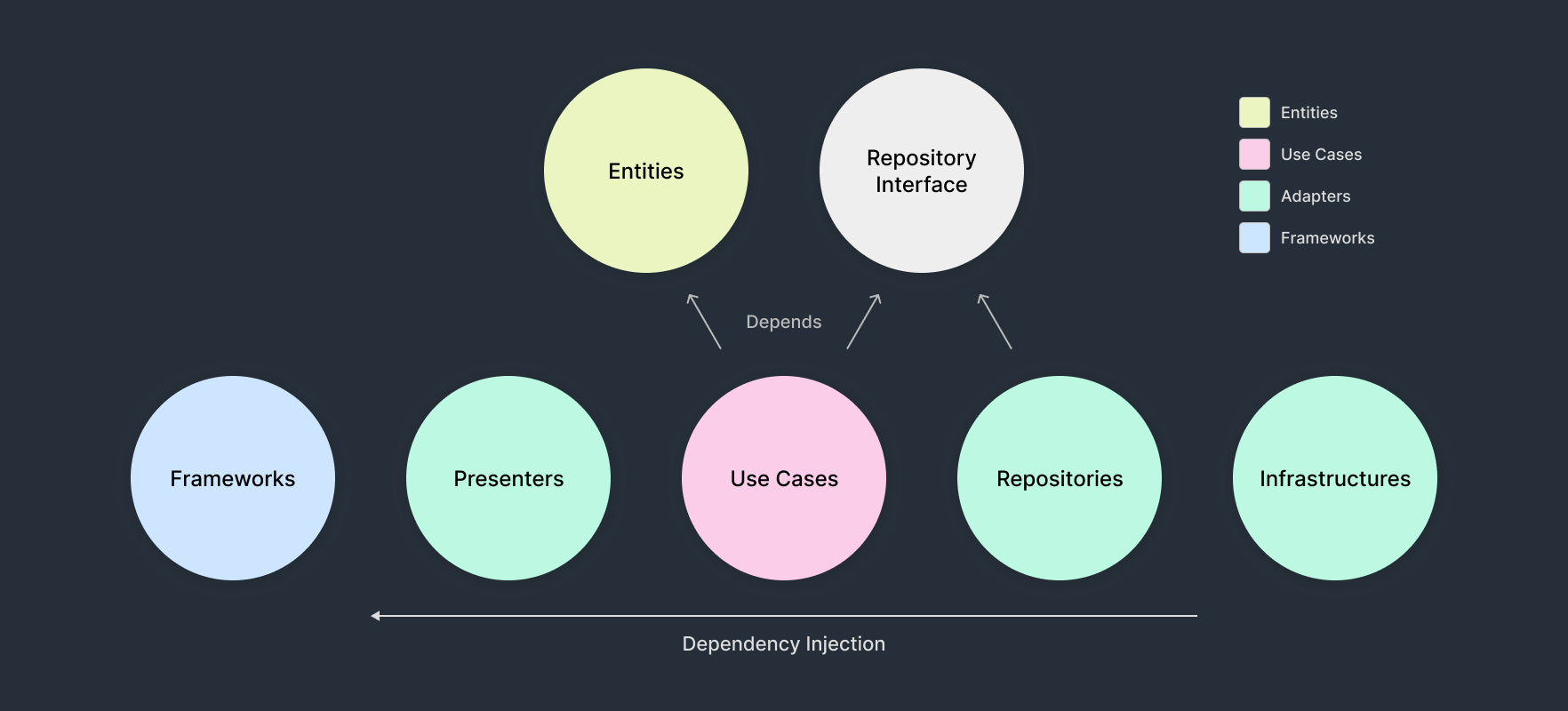

The flow of Clean Architecture can be briefly illustrated in the diagram above.

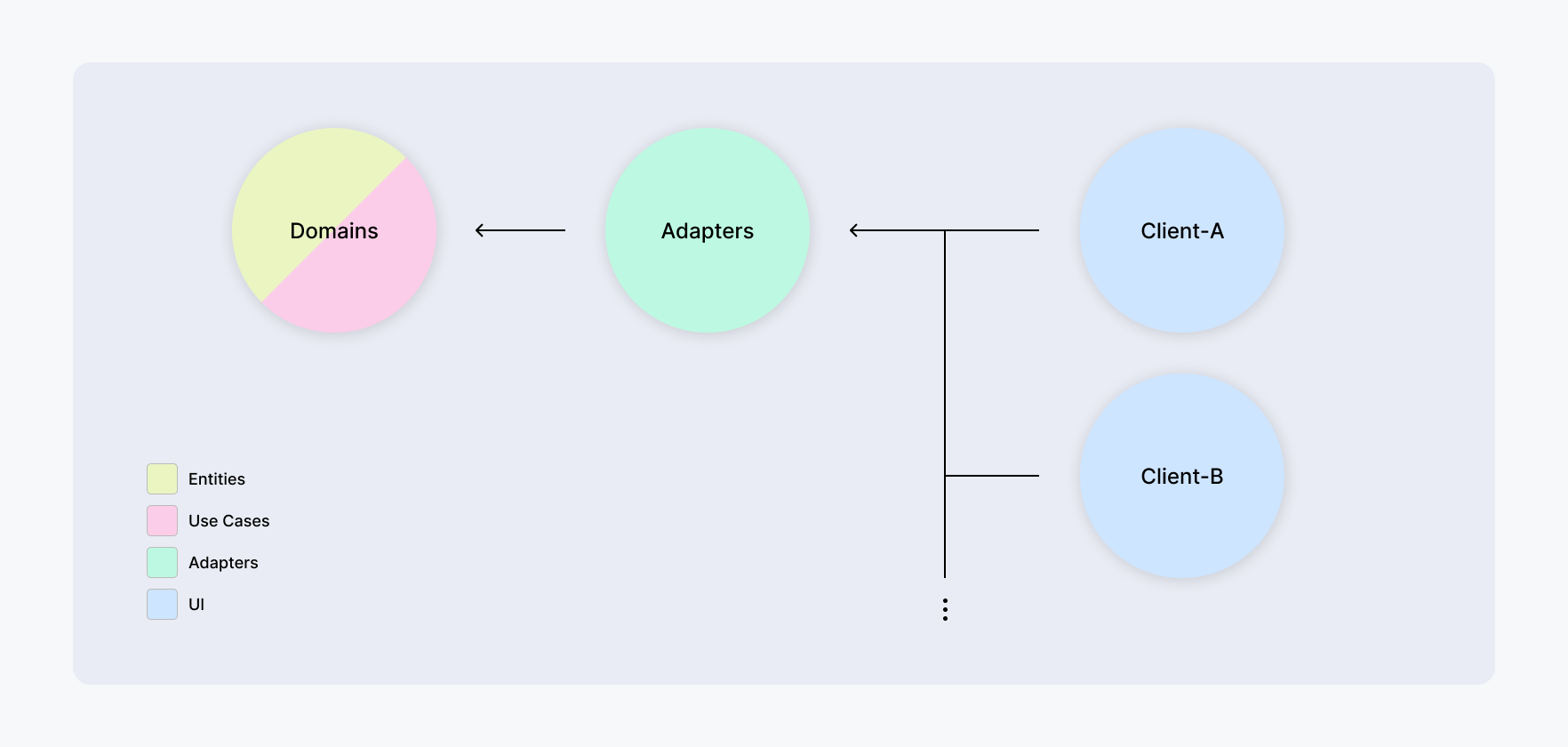

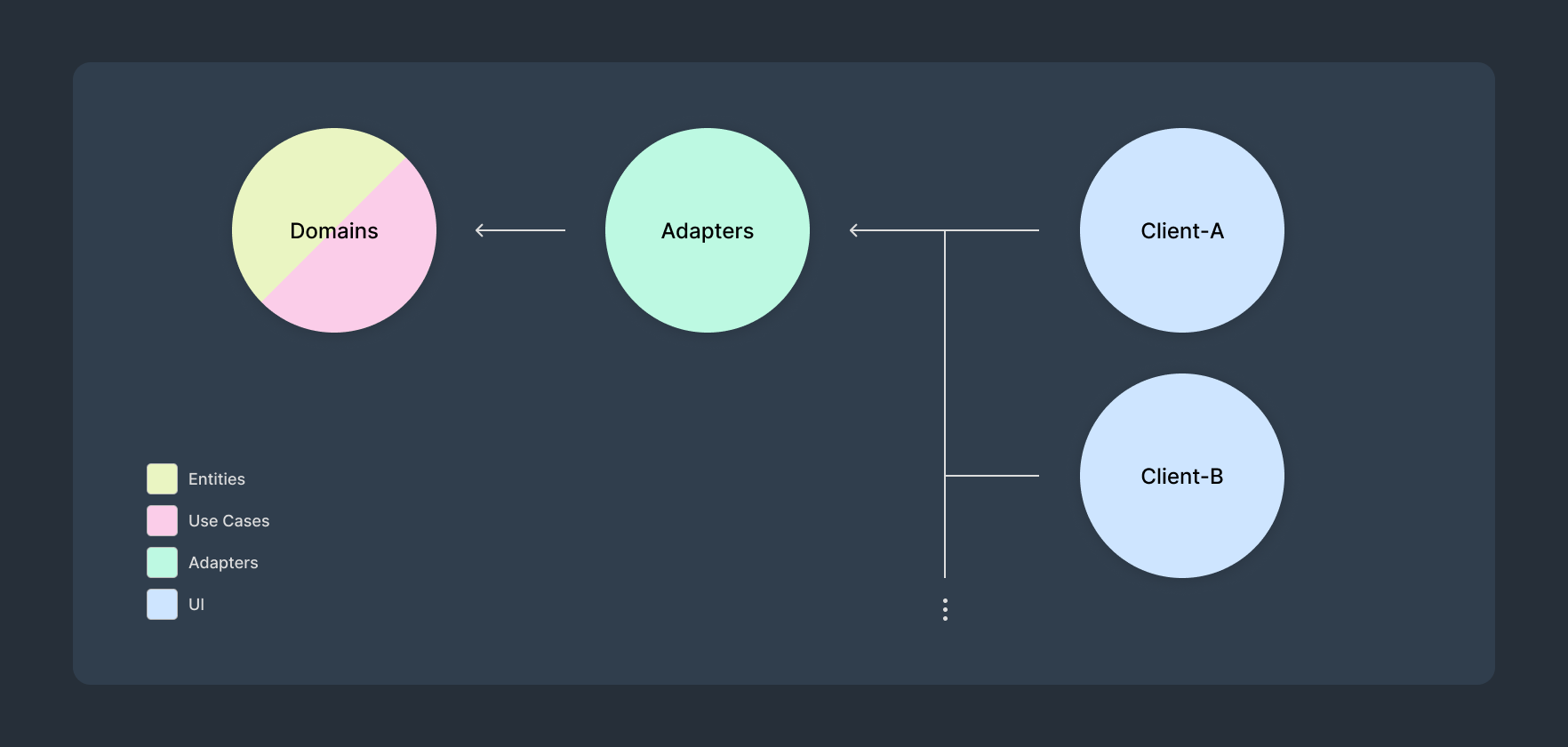

In the monorepo structure, the Domains layer, Adapters layer, and Service layer are clearly separated into individual packages with well-defined dependencies. At the root level, basic configurations for TypeScript, ESLint, and Jest are provided, which can be extended and used in the lower-level packages.
/packages
├─ domains
│ └─ src
│ ├─ aggregates
│ ├─ entities
│ ├─ useCases
│ ├─ vos
│ ├─ repositories
│ │ └─ interface
│ └─ dtos
│ └─ interface
├─ adapters
│ └─ src
│ ├─ presenters
│ ├─ repositories
│ ├─ dtos
│ └─ infrastructures
│ └─ interface
├─ client-a
│ └─ src
│ └─ ...
└─ client-b
└─ src
└─ ...
In this sample project, service packages use shared packages (Domains, Adapters, and other potential packages) through a Source-to-Source approach, rather than referencing pre-built outputs. This approach ensures that the service’s module bundler can effectively eliminate unused code during the final build. Therefore, all shared packages must be written using ES Modules.
Most module bundlers natively support tree shaking for code written in ES Modules.
The domain layer defines business rules and business logic.
In the sample project, it represents a simple forum service where users can view a list of posts or create posts and comments. It is structured as a single package within a monorepo, containing definitions for Entities, Use Cases, and Value Objects. Various service packages utilize these definitions to build their respective functionalities.
Entities are one of the core concepts in domain modeling, representing objects that maintain a unique identity and contain both state and behavior. An Entity is not just a data holder but is responsible for controlling and managing its data. It encapsulates important business rules and logic within the domain.
In the sample project, there are three entities: Post, Comment, and User.
Clean Architecture shares a common goal with DDD in pursuing domain-centric design. While Clean Architecture focuses on structural flexibility, maintainability, technological independence, and testability of software, DDD emphasizes solving complex business problems.
However, Clean Architecture adopts some of DDD’s philosophy and principles, making it compatible with DDD and providing a framework to effectively implement DDD concepts. For example, Clean Architecture can leverage DDD concepts such as Ubiquitous Language and Aggregate Root.

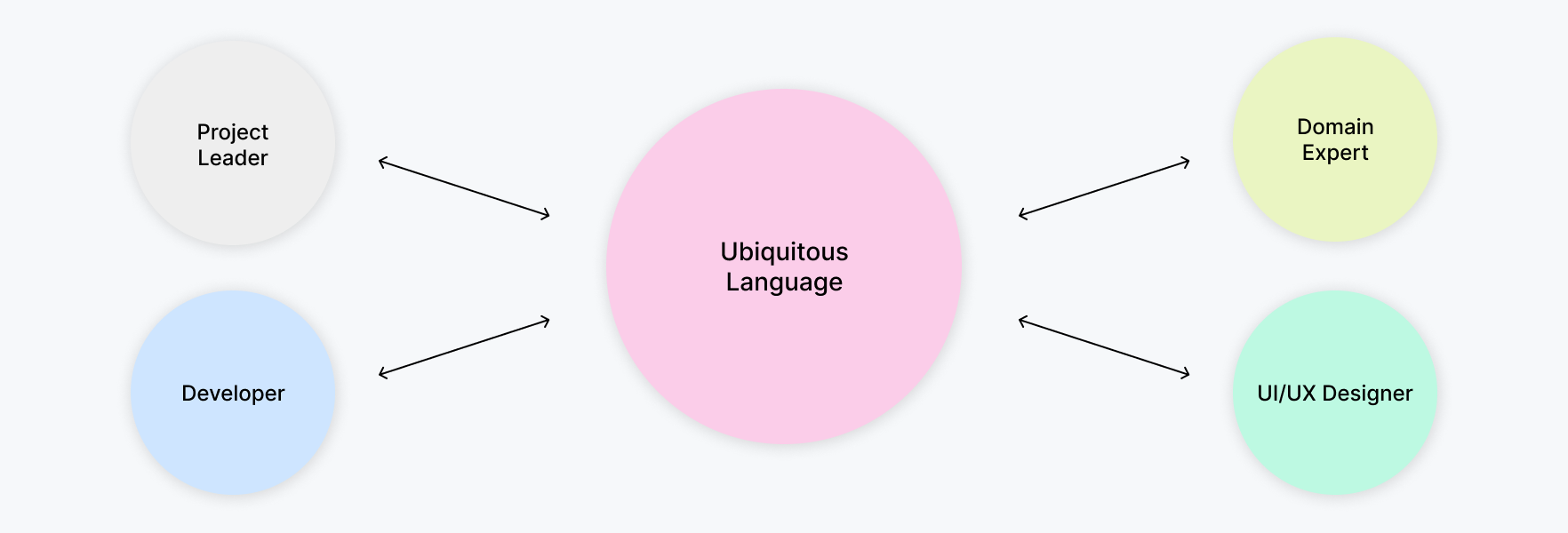

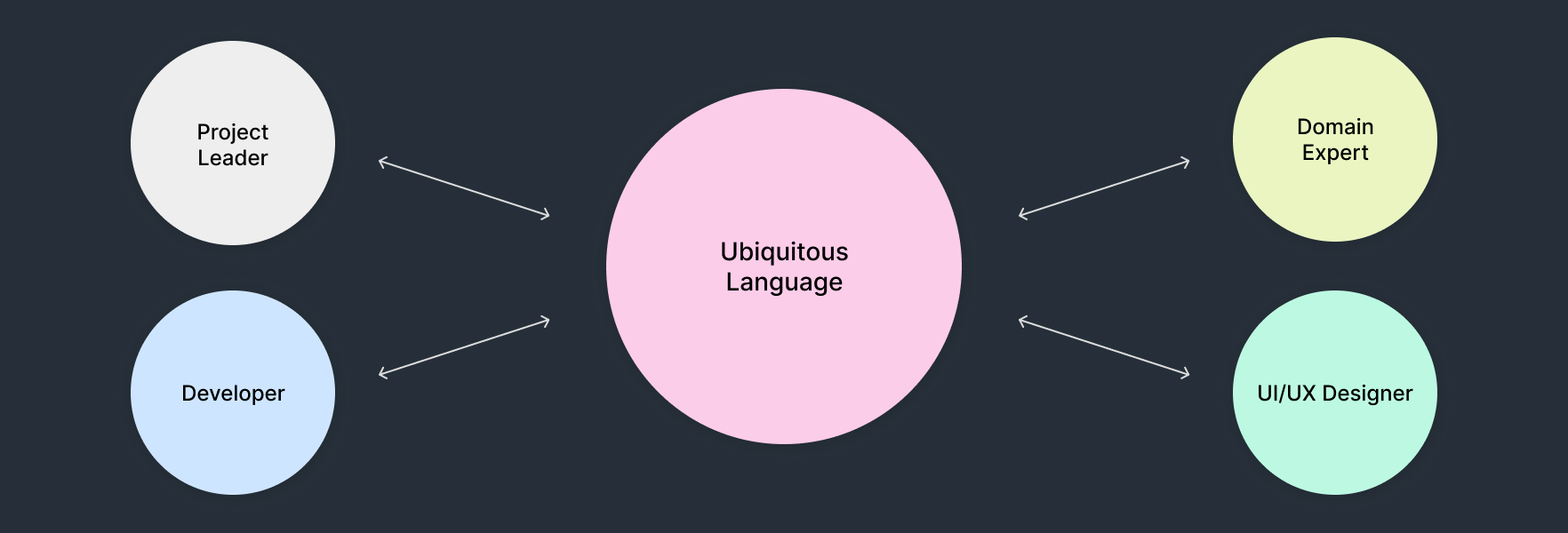

Ubiquitous Language refers to a shared language used by all team members to maintain consistent communication throughout a project. This language should be shared by everyone involved, including project leaders, domain experts, developers, UI/UX designers, business analysts, and QA engineers. It should not only be used in documentation and discussions during collaboration but also be reflected in the software model and code.

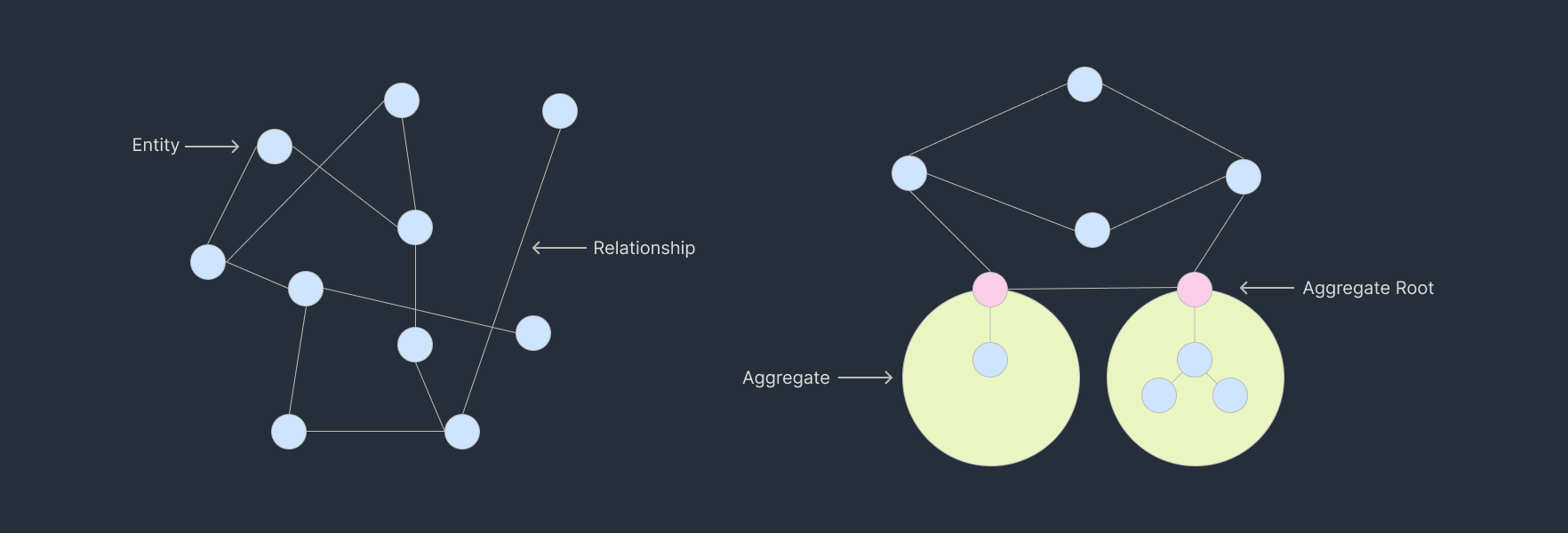

An Aggregate is a consistency boundary that can include multiple entities and value objects. It encapsulates internal state and controls external access. All modifications must go through the Aggregate Root, which helps manage the complexity of relationships within the model and maintain consistency when services expand or transactions become more complex.
In the sample project, Post serves as an Aggregate, with the Comment entity having a dependent relationship on it. Therefore, adding or modifying a comment must be done through the Post entity. Additionally, while the Post entity requires information about the author (the User who wrote the post), the User is an independent entity. To maintain a loose relationship, only the User’s id and name are included as a Value Object within Post.
Use Cases define the interactions between users and the service, leveraging domain objects such as Entities, Aggregates, and Value Objects to deliver business functionality to users. From a system architecture perspective, Use Cases help separate application logic from business rules. Rather than directly controlling business logic, Use Cases facilitate interaction with the domain objects, allowing them to enforce business rules and logic.
In the sample project, Use Cases include simple interactions such as retrieving a summarized list of posts, and adding, deleting, or modifying posts and comments.

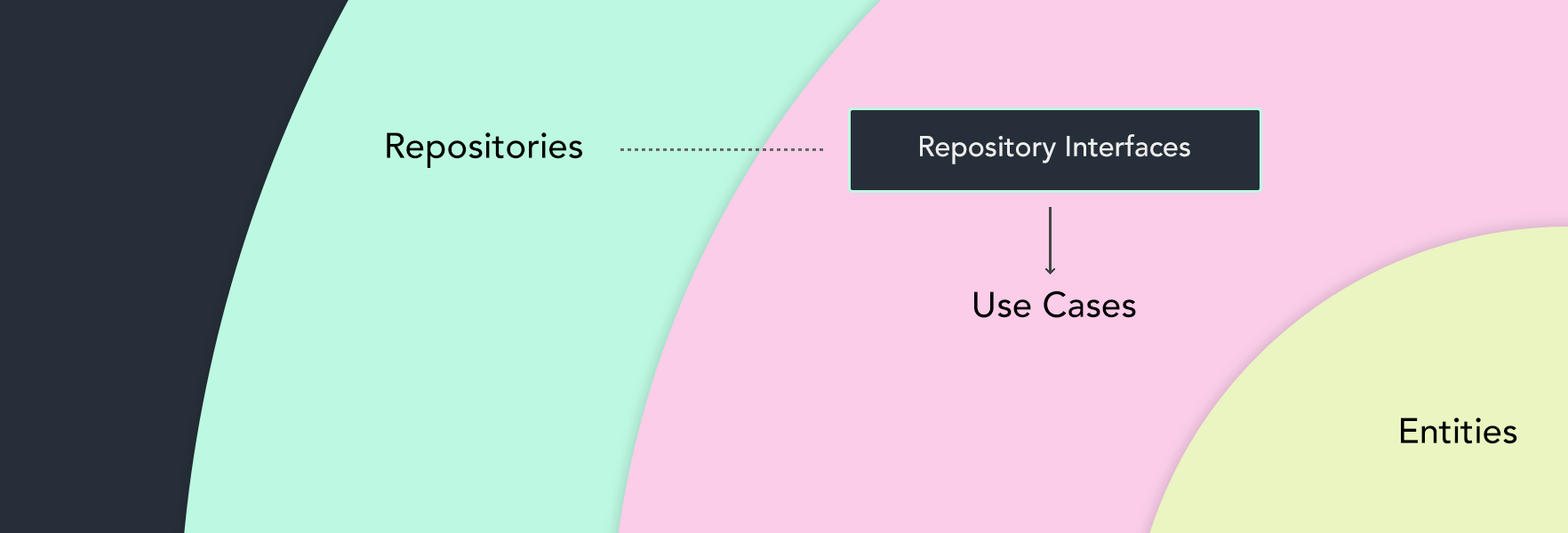

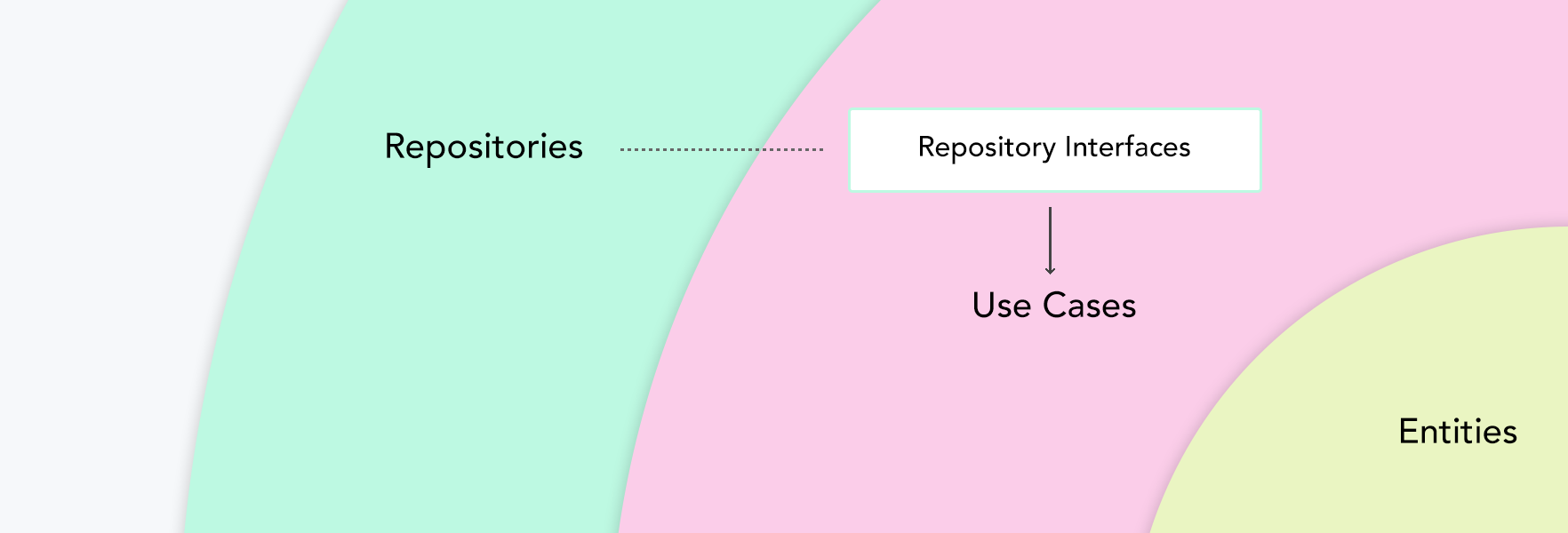

Since the Repository belongs to the Adapter layer, the higher-level Use Case should not directly depend on it. Therefore, in the Use Case, an abstract interface for the Repository is implemented, which is later handled through Dependency Injection(DI).

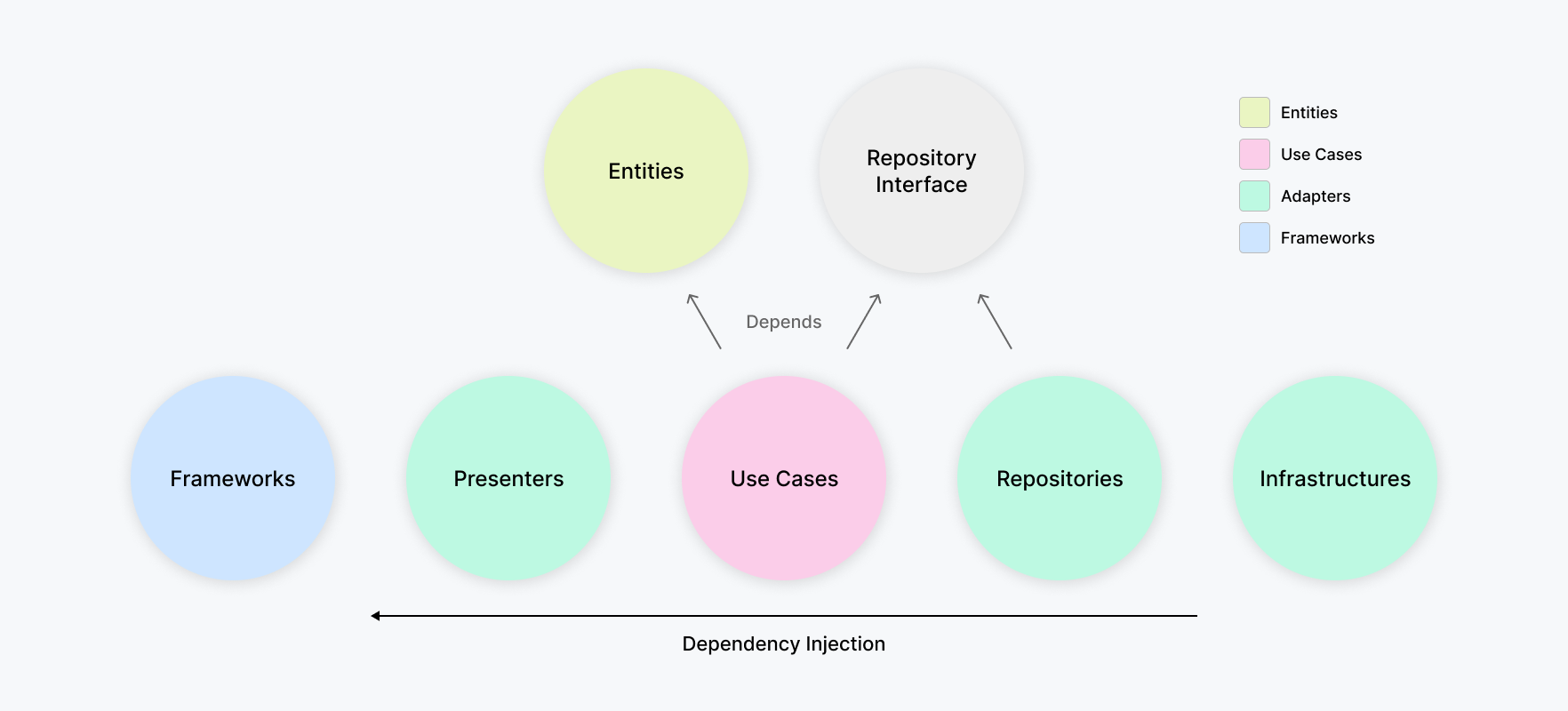

Similar to the domain layer, the adapters are also organized as a single package within the monorepo. The adapter layer typically includes Presenters, Repositories, and Infrastructure components. These are used in service packages through dependency injection (DI) and can be extended by inheriting and customizing them as needed.
The Infrastructure layer manages external connections such as communication with external servers via HTTP or interactions with browser APIs like LocalStorage, which are commonly used in web services.
In a typical backend, the Repository layer handles CRUD operations related to databases, such as storing, retrieving, modifying, and deleting data. It abstracts database interactions so that the business logic does not need to be aware of the underlying data store.
Similarly, in the sample project, the Repository layer performs POST, GET, PUT, and DELETE operations for HTTP communication with the API server. It abstracts these interactions so the business logic is not concerned with where the data originates. Data retrieved from external servers is encapsulated as DTOs (Data Transfer Objects) to ensure stability when used internally within the client.
The Presenter layer handles requests from the UI, forwarding them to the server. It also converts entity data into View Models used in the UI, responding appropriately based on user requests.
The sample project's client services consist of two simple services: client-a and client-b. Both services are built based on the same domain-driven architecture, and their UI components are designed following the principles of Atomic Design.
Vite, React, Jotai, Tailwind CSS, Jest, RTL, Cypress
client-a directly utilizes elements from the Domains and Adapters layers and implements methods for each domain using React hooks and the global state management library Jotai. These methods act as the Presenters layer in the final service.
Previously, the Adapters package explicitly included a Presenters directory to represent a framework-agnostic Presenters layer. However, in services like this sample project that use React, we extend the Presenters layer by injecting dependencies into the final Presenters objects and utilizing React hooks to achieve a composition that aligns with the framework.
import { API_URL } from "../constants"
import repositoriesFn from "./repositories"
import useCasesFn from "./useCases"
import presentersFn from "./presenters"
export default function di() {
const repositories = repositoriesFn(API_URL)
const useCases = useCasesFn(repositories)
const presenters = presentersFn(useCases)
return presenters
}import { useCallback, useMemo, useTransition } from "react"
import { atom, useAtom } from "jotai"
import IPost from "domains/aggregates/interfaces/IPost"
import Post from "domains/aggregates/Post"
import presenters from "../di"
const PostsAtoms = atom<IPost[]>([])
export default function usePosts() {
const di = useMemo(() => presenters(), [])
const [posts, setPosts] = useAtom<IPost[]>(PostsAtoms)
const [isPending, startTransition] = useTransition()
const getPosts = useCallback(async () => {
startTransition(async () => {
const resPosts = await di.post.getPosts()
setPosts(resPosts)
})
}, [di.post, setPosts])
...
}Next.js, Jotai, Tailwind CSS, Jest, RTL, Cypress
The client-b service is an extension of client-a, utilizing the same domain model to demonstrate service scalability. While it shares similarities with client-a, the key difference is that client-b is built on Next.js. Unlike client-a, which manipulates data through HTTP communication with an API server, client-b is designed to operate without HTTP communication, relying instead on local storage.
Therefore, unlike client-a, client-b implements new repositories by concretely defining the repository interfaces from Domains and injecting these dependencies to create a new service that extends the existing functionality in a straightforward manner.
When services use the same framework, as in this sample project, the advantages of a monorepo setup can be leveraged by creating a separate package for shared UI components. This increases component reusability, making it easier to expand and maintain services more efficiently.
You can build or run each package in the sample project using the commands registered at the root.
$ yarn install# client-a
$ yarn start:a
# client-b
$ yarn start:bI'm grateful for all the support and interest 🙇♂️
